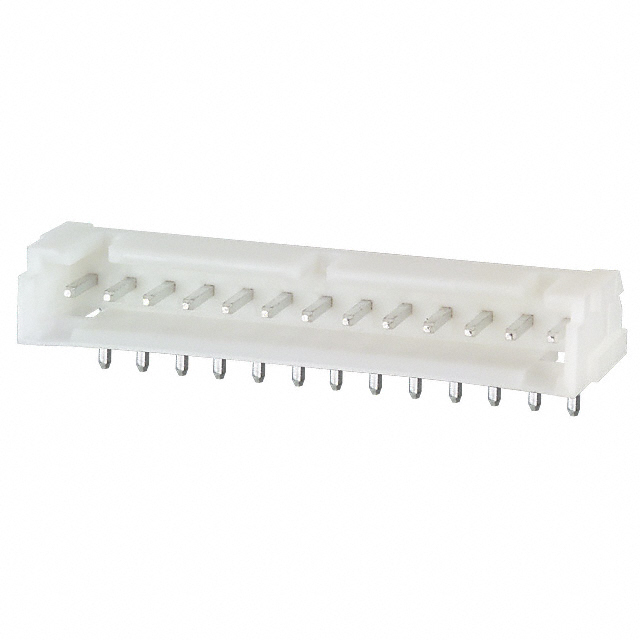

DF1BZ-13P-2.5DS

LTB

Hirose Electric USA, Inc.

[SIGNALBEE ] 2.5MM PITCH CONNECTORS FOR DISCRETE WIRE (UL/CSA CERTIFIED)

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DF1BZ-13P-2.5DS

Connector Type	Header
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	1 µm
Contact Finish Thickness - Mating	39.4 µin
Contact Length - Mating	0.177 in
Contact Length - Mating	4.5 mm
Contact Length - Post	3.6 mm
Contact Length - Post	0.142 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Features	Keying Slot
Insulation Color	White
Insulation Height	5.69 mm
Insulation Height	0.224 in
Insulation Material	Polyamide (PA), Nylon
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	13
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-35 °C
Pitch - Mating	2.5 mm
Pitch - Mating	0.098 in
Shrouding	Shrouded - 4 Wall
Style	Board to Cable/Wire
Termination	Solder
Voltage Rating	150 VDC

DF1BZ Series

...

Part	Features	Material Flammability Rating	Insulation Height	Insulation Height	Fastening Type	Shrouding	Number of Positions	Connector Type	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Number of Positions Loaded	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Contact Length - Post	Contact Length - Post	Contact Shape	Insulation Color	Voltage Rating	Operating Temperature [Min]	Operating Temperature [Max]	Style	Termination	Contact Material	Pitch - Mating	Pitch - Mating	Number of Rows	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Mated Stacking Heights	Overall Contact Length	Overall Contact Length
Hirose Electric USA, Inc. DF1BZ-13P-2.5DS	Keying Slot	UL94 V-0	5.69 mm	0.224 in	Push-Pull	Shrouded - 4 Wall	13	Header	0.177 in	4.5 mm	Tin	All	Male Pin	1 µm	39.4 µin	Through Hole Right Angle	3.6 mm	0.142 in	Square	White	150 VDC	-35 °C	85 °C	Board to Cable/Wire	Solder	Brass	2.5 mm	0.098 in	1	Nylon Polyamide (PA)
Hirose Electric USA, Inc. DF1BZ-3P-2.5DS	Keying Slot	UL94 V-0	5.69 mm	0.224 in	Push-Pull	Shrouded - 4 Wall		Header	0.177 in	4.5 mm	Tin	All	Male Pin	1 µm	39.4 µin	Through Hole Right Angle	3.6 mm	0.142 in	Square	White	150 VDC	-35 °C	85 °C	Board to Cable/Wire	Solder	Brass	2.5 mm	0.098 in	1	Nylon Polyamide (PA)
Hirose Electric USA, Inc. DF1BZ-10P-2.5DS	Keying Slot	UL94 V-0	5.69 mm	0.224 in	Push-Pull	Shrouded - 4 Wall	10	Header	0.177 in	4.5 mm	Tin	All	Male Pin	1 µm	39.4 µin	Through Hole Right Angle	3.6 mm	0.142 in	Square	White	150 VDC	-35 °C	85 °C	Board to Cable/Wire	Solder	Brass	2.5 mm	0.098 in	1	Nylon Polyamide (PA)
Hirose Electric USA, Inc. DF1BZ-8DP-2.5DS(28)	Keying Slot	UL94 V-0	8.61 mm	0.339 "	Push-Pull	Shrouded - 4 Wall	8	Header	0.177 in	4.5 mm	Tin	All	Male Pin	1 µm	39.4 µin	Through Hole Right Angle	3.3 mm	0.13 in	Square		150 VDC	-35 °C	85 °C	Board to Cable/Wire	Solder	Brass	2.5 mm	0.098 in	2	Nylon Polyamide (PA)	0.098 in	2.5 mm
Hirose Electric USA, Inc. DF1BZ-7P-2.5DS(22)
Hirose Electric USA, Inc. DF1BZ-13P-2.5DSA	Keying Slot	UL94 V-0	9.5 mm	0.374 in	Push-Pull	Shrouded - 4 Wall	13	Header	0.177 in	4.5 mm	Tin	All	Male Pin	1 µm	39.4 µin	Through Hole	3.6 mm	0.142 in	Square	White	250 VDC	-35 °C	85 °C	Board to Cable/Wire	Solder	Brass	2.5 mm	0.098 in	1	Nylon Polyamide (PA)			14 mm	0.417 "	10.6 mm
Hirose Electric USA, Inc. DF1BZ-5P-2.5DSA(11)
Hirose Electric USA, Inc. DF1BZ-18DP-2.5DS(26)
Hirose Electric USA, Inc. DF1BZ-8P-2.5DS(16)
Hirose Electric USA, Inc. DF1BZ-10P-2.5DSA	Keying Slot	UL94 V-0	9.5 mm	0.374 in	Push-Pull	Shrouded - 4 Wall	10	Header	0.177 in	4.5 mm	Tin	All	Male Pin	1 µm	39.4 µin	Through Hole	3.6 mm	0.142 in	Square	White	250 VDC	-35 °C	85 °C	Board to Cable/Wire	Solder	Brass	2.5 mm	0.098 in	1	Nylon Polyamide (PA)			14 mm	0.417 "	10.6 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 0.56
Newark	Each	1	$ 0.52
		5000	$ 0.46

Description

General part information

DF1BZ Series

Connector Header Through Hole, Right Angle 13 position 0.098" (2.50mm)
