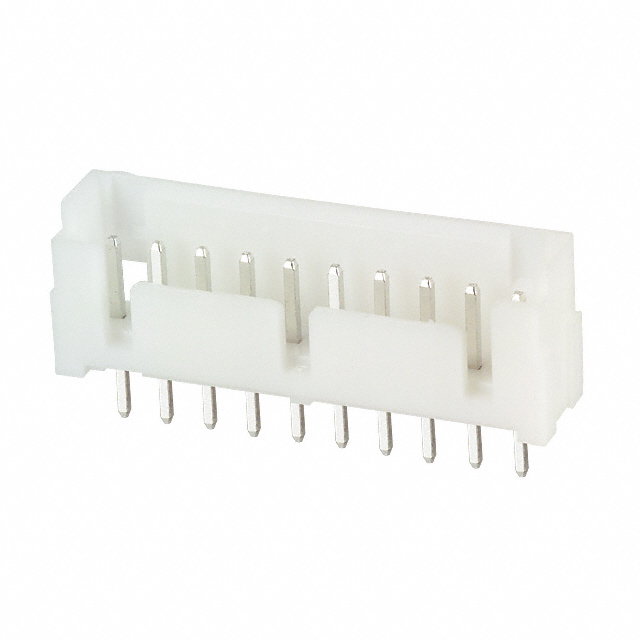

DF1BZ-10P-2.5DSA
ActiveHirose Electric USA, Inc.
BOARD CONNECTOR, 10 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, WHITE INSULATOR, ROHS COMPLIANT
Deep-Dive with AI
Search across all available documentation for this part.
DF1BZ-10P-2.5DSA
ActiveHirose Electric USA, Inc.
BOARD CONNECTOR, 10 CONTACT(S), 1 ROW(S), MALE, STRAIGHT, 0.098 INCH PITCH, SOLDER TERMINAL, LOCKING, WHITE INSULATOR, ROHS COMPLIANT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DF1BZ-10P-2.5DSA |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Length - Mating | 0.177 in |
| Contact Length - Mating | 4.5 mm |
| Contact Length - Post | 3.6 mm |
| Contact Length - Post | 0.142 in |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Keying Slot |
| Insulation Color | White |
| Insulation Height | 9.5 mm |
| Insulation Height | 0.374 in |
| Insulation Material | Polyamide (PA), Nylon |
| Mated Stacking Heights | 14 mm |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Overall Contact Length | 0.417 " |
| Overall Contact Length | 10.6 mm |
| Pitch - Mating | 2.5 mm |
| Pitch - Mating | 0.098 in |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 250 VDC |
DF1BZ Series
...
| Part | Features | Material Flammability Rating | Insulation Height | Insulation Height | Fastening Type | Shrouding | Number of Positions | Connector Type | Contact Length - Mating | Contact Length - Mating | Contact Finish - Post | Number of Positions Loaded | Contact Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Mounting Type | Contact Length - Post | Contact Length - Post | Contact Shape | Insulation Color | Voltage Rating | Operating Temperature [Min] | Operating Temperature [Max] | Style | Termination | Contact Material | Pitch - Mating | Pitch - Mating | Number of Rows | Insulation Material | Row Spacing - Mating | Row Spacing - Mating | Mated Stacking Heights | Overall Contact Length | Overall Contact Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Keying Slot | UL94 V-0 | 5.69 mm | 0.224 in | Push-Pull | Shrouded - 4 Wall | 13 | Header | 0.177 in | 4.5 mm | Tin | All | Male Pin | 1 µm | 39.4 µin | Through Hole Right Angle | 3.6 mm | 0.142 in | Square | White | 150 VDC | -35 °C | 85 °C | Board to Cable/Wire | Solder | Brass | 2.5 mm | 0.098 in | 1 | Nylon Polyamide (PA) | |||||
Hirose Electric USA, Inc. | Keying Slot | UL94 V-0 | 5.69 mm | 0.224 in | Push-Pull | Shrouded - 4 Wall | Header | 0.177 in | 4.5 mm | Tin | All | Male Pin | 1 µm | 39.4 µin | Through Hole Right Angle | 3.6 mm | 0.142 in | Square | White | 150 VDC | -35 °C | 85 °C | Board to Cable/Wire | Solder | Brass | 2.5 mm | 0.098 in | 1 | Nylon Polyamide (PA) | ||||||
Hirose Electric USA, Inc. | Keying Slot | UL94 V-0 | 5.69 mm | 0.224 in | Push-Pull | Shrouded - 4 Wall | 10 | Header | 0.177 in | 4.5 mm | Tin | All | Male Pin | 1 µm | 39.4 µin | Through Hole Right Angle | 3.6 mm | 0.142 in | Square | White | 150 VDC | -35 °C | 85 °C | Board to Cable/Wire | Solder | Brass | 2.5 mm | 0.098 in | 1 | Nylon Polyamide (PA) | |||||
Hirose Electric USA, Inc. | Keying Slot | UL94 V-0 | 8.61 mm | 0.339 " | Push-Pull | Shrouded - 4 Wall | 8 | Header | 0.177 in | 4.5 mm | Tin | All | Male Pin | 1 µm | 39.4 µin | Through Hole Right Angle | 3.3 mm | 0.13 in | Square | 150 VDC | -35 °C | 85 °C | Board to Cable/Wire | Solder | Brass | 2.5 mm | 0.098 in | 2 | Nylon Polyamide (PA) | 0.098 in | 2.5 mm | ||||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Keying Slot | UL94 V-0 | 9.5 mm | 0.374 in | Push-Pull | Shrouded - 4 Wall | 13 | Header | 0.177 in | 4.5 mm | Tin | All | Male Pin | 1 µm | 39.4 µin | Through Hole | 3.6 mm | 0.142 in | Square | White | 250 VDC | -35 °C | 85 °C | Board to Cable/Wire | Solder | Brass | 2.5 mm | 0.098 in | 1 | Nylon Polyamide (PA) | 14 mm | 0.417 " | 10.6 mm | ||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | |||||||||||||||||||||||||||||||||||
Hirose Electric USA, Inc. | Keying Slot | UL94 V-0 | 9.5 mm | 0.374 in | Push-Pull | Shrouded - 4 Wall | 10 | Header | 0.177 in | 4.5 mm | Tin | All | Male Pin | 1 µm | 39.4 µin | Through Hole | 3.6 mm | 0.142 in | Square | White | 250 VDC | -35 °C | 85 °C | Board to Cable/Wire | Solder | Brass | 2.5 mm | 0.098 in | 1 | Nylon Polyamide (PA) | 14 mm | 0.417 " | 10.6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.56 | |
| 10 | $ 0.43 | |||
| 100 | $ 0.33 | |||
| 500 | $ 0.27 | |||
| 1000 | $ 0.25 | |||
| 5000 | $ 0.22 | |||
| 10000 | $ 0.20 | |||
Description
General part information
DF1BZ Series
Connector Header Through Hole 10 position 0.098" (2.50mm)
