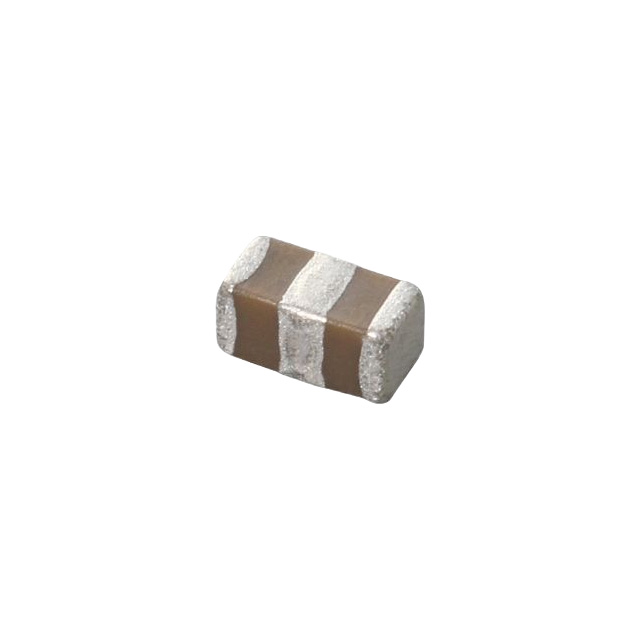

NFM15PC755R0G3D

Active

Murata Power Solutions Inc.

CAP FEEDTHRU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet NFM Part Numbering

NFM15PC755R0G3D

Active

Murata Power Solutions Inc.

CAP FEEDTHRU

Deep-Dive with AI

DocumentsDatasheet NFM Part Numbering

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NFM15PC755R0G3D

Capacitance	7.5 µF
Current	2 A
DC Resistance (DCR) (Max) [Max]	40 mOhm
Height (Max)	0.65 mm
Height (Max) [Max]	0.026 in
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Package / Case	0402
Package / Case	1005 Metric
Package / Case	3 Lead
Size / Dimension [x]	1 mm
Size / Dimension [x]	0.039 in
Size / Dimension [y]	0.02 in
Size / Dimension [y]	0.5 mm
Tolerance	20 %
Voltage - Rated	4 V

NFM15PC Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Tolerance	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage - Rated	Current	Capacitance	Height (Max)
Murata Power Solutions Inc. NFM15PC474R0J3D	85 °C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	6.3 V	2 A	0.47 µF
Murata Power Solutions Inc. NFM15PC915R0E3D			0402	1005 Metric	3 Lead
Murata Power Solutions Inc. NFM15PC473C1A3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	40 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	10 V	1 A
Murata Power Solutions Inc. NFM15PC105R0G3D	85 °C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	4 V	2 A	1 µF
Murata Power Solutions Inc. NFM15PC104R1A3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	10 V	2 A	100000 pF
Murata Power Solutions Inc. NFM15PC755D0E3D			0402	1005 Metric	3 Lead
Murata Power Solutions Inc. NFM15PC104D0J3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	6.3 V	2 A	100000 pF
Murata Power Solutions Inc. NFM15PC755R0G3D	85 °C	-55 °C	0402	1005 Metric	3 Lead		0.026 in	20 %	40 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	4 V	2 A	7.5 µF	0.65 mm
Murata Power Solutions Inc. NFM15PC224D0J3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	6.3 V	2 A	0.22 µF
Murata Power Solutions Inc. NFM15PC435R0G3D	85 °C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	4 V	2 A	4.3 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.10
		10	$ 0.10
		25	$ 0.09
		50	$ 0.09
		100	$ 0.08
		250	$ 0.07
		500	$ 0.05
		1000	$ 0.05
		5000	$ 0.05
	Digi-Reel®	1	$ 0.10
		10	$ 0.10
		25	$ 0.09
		50	$ 0.09
		100	$ 0.08
		250	$ 0.07
		500	$ 0.05
		1000	$ 0.05
		5000	$ 0.05
	Tape & Reel (TR)	10000	$ 0.04
		30000	$ 0.04

Description

General part information

NFM15PC Series

7.5 µF Feed Through Capacitor 4V 2 A 40mOhm 0402 (1005 Metric), 3 PC Pad

Documents

Technical documentation and resources

Datasheet

NFM Part Numbering

Datasheet
