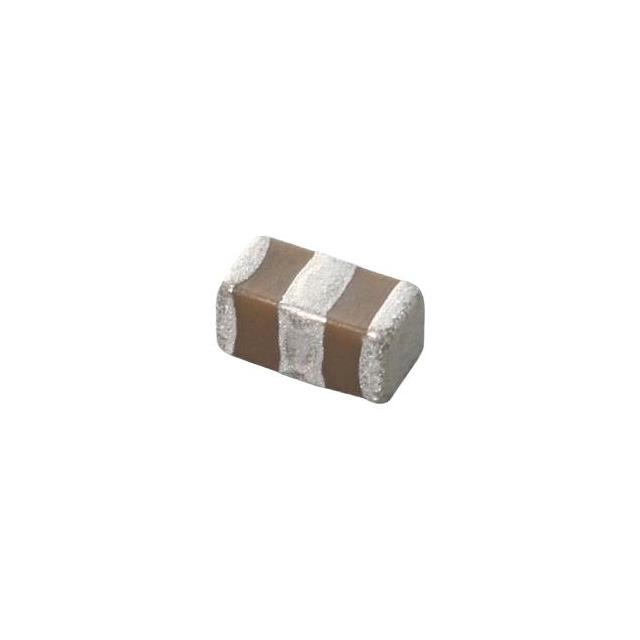

NFM15PC755D0E3D

Active

Murata Power Solutions Inc.

CAP FEEDTHRU

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet NFM Part Numbering

NFM15PC755D0E3D

Active

Murata Power Solutions Inc.

CAP FEEDTHRU

Deep-Dive with AI

DocumentsDatasheet NFM Part Numbering

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	NFM15PC755D0E3D

Package / Case	0402
Package / Case	1005 Metric
Package / Case	3 Lead

NFM15PC Series

Part	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Package / Case	Package / Case	Height (Max) [Max]	Height (Max) [Max]	Tolerance	DC Resistance (DCR) (Max) [Max]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Voltage - Rated	Current	Capacitance	Height (Max)
Murata Power Solutions Inc. NFM15PC474R0J3D	85 °C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	6.3 V	2 A	0.47 µF
Murata Power Solutions Inc. NFM15PC915R0E3D			0402	1005 Metric	3 Lead
Murata Power Solutions Inc. NFM15PC473C1A3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	40 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	10 V	1 A
Murata Power Solutions Inc. NFM15PC105R0G3D	85 °C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	4 V	2 A	1 µF
Murata Power Solutions Inc. NFM15PC104R1A3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	10 V	2 A	100000 pF
Murata Power Solutions Inc. NFM15PC755D0E3D			0402	1005 Metric	3 Lead
Murata Power Solutions Inc. NFM15PC104D0J3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	6.3 V	2 A	100000 pF
Murata Power Solutions Inc. NFM15PC755R0G3D	85 °C	-55 °C	0402	1005 Metric	3 Lead		0.026 in	20 %	40 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	4 V	2 A	7.5 µF	0.65 mm
Murata Power Solutions Inc. NFM15PC224D0J3D	105 ░C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	6.3 V	2 A	0.22 µF
Murata Power Solutions Inc. NFM15PC435R0G3D	85 °C	-55 °C	0402	1005 Metric	3 Lead	0.5 mm	0.02 in	20 %	30 mOhm	1 mm	0.02 in	0.5 mm	0.039 in	Surface Mount	4 V	2 A	4.3 µF

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	10000	$ 0.04

Description

General part information

NFM15PC Series

Feed Through Capacitor 0402 (1005 Metric), 3 PC Pad

Documents

Technical documentation and resources

Datasheet

NFM Part Numbering

Datasheet
