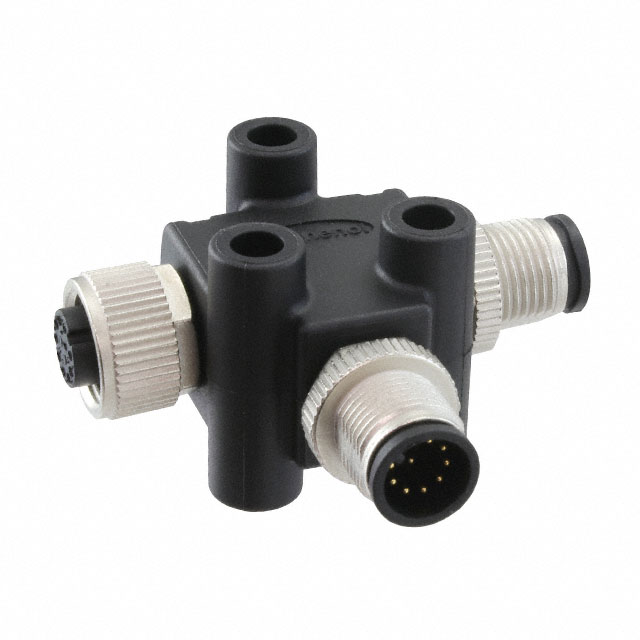

TA-A10M-A10F-A10M-01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, T ADAPTOR, METAL, A CODING, 1.5A, 10 PINS, (END 1) MALE MALE, (END 2) MALE MALE, (END 3) FEMALE FEMAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TA-A10M-A10F-A10M-01
ActiveAmphenol LTW
M SERIES SENSOR CONNECTOR, T ADAPTOR, METAL, A CODING, 1.5A, 10 PINS, (END 1) MALE MALE, (END 2) MALE MALE, (END 3) FEMALE FEMAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TA-A10M-A10F-A10M-01 |
|---|---|
| Connector Style | Distributor T-Shaped |
| Convert From (Adapter End) | Male Pins |
| Convert To (Adapter End) | Female Sockets (1), Male Pins (1) |
| Features | Coupling Nut |
| Housing Material | Thermoplastic |
| Ingress Protection | IP68 - Dust Tight, Waterproof |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions (Convert To) [custom] | 2 |
| Number of Positions (Convert To) [custom] | 10 |
| Orientation (Convert From) | A |
| Orientation (Convert To) | A |
| Shell Size - Insert (Convert From) | M12 |
| Shell Size - Insert (Convert To) [custom] | M12 |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
TA-A10M Series
Circular Connector Distributor T-Shaped 10/10 (2) Male Pins/Female Sockets (1), Male Pins (1) Free Hanging (In-Line)
