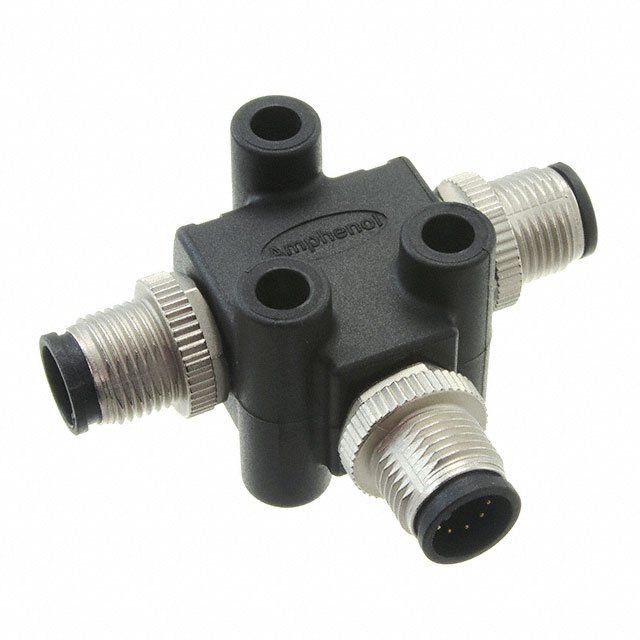

TA-A10M-A10M-A10M-01

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, T ADAPTOR, METAL, A CODING, 1.5A, 10 PINS, (END 1) MALE MALE, (END 2) MALE MALE, (END 3) MALE MALE, S

Search across all available documentation for this part.

Active

Amphenol LTW

M SERIES SENSOR CONNECTOR, T ADAPTOR, METAL, A CODING, 1.5A, 10 PINS, (END 1) MALE MALE, (END 2) MALE MALE, (END 3) MALE MALE, S

Technical Specifications

Parameters and characteristics for this part

Specification	TA-A10M-A10M-A10M-01

Connector Style	Distributor T-Shaped
Convert From (Adapter End)	Male Pins
Convert To (Adapter End)	Male Pins (2)
Housing Material	Thermoplastic
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line)
Number of Positions (Convert To) [custom]	2
Number of Positions (Convert To) [custom]	10
Orientation (Convert From)	A
Orientation (Convert To)	A
Shell Size - Insert (Convert From)	M12
Shell Size - Insert (Convert To) [custom]	M12
Shielding	Unshielded

Part	Mounting Type	Orientation (Convert From)	Number of Positions (Convert To) [custom]	Number of Positions (Convert To) [custom]	Shielding	Shell Size - Insert (Convert To) [custom]	Convert From (Adapter End)	Orientation (Convert To)	Ingress Protection	Shell Size - Insert (Convert From)	Connector Style	Convert To (Adapter End)	Housing Material	Features
Amphenol LTW TA-A10M-A10M-A10M-01	Free Hanging (In-Line)	A	2	10	Unshielded	M12	Male Pins	A	IP68 - Dust Tight Waterproof	M12	Distributor T-Shaped	Male Pins (2)	Thermoplastic
Amphenol LTW TA-A10M-A10F-A10M-01	Free Hanging (In-Line)	A	2	10	Unshielded	M12	Male Pins	A	IP68 - Dust Tight Waterproof	M12	Distributor T-Shaped	Female Sockets (1) Male Pins (1)	Thermoplastic	Coupling Nut
Amphenol LTW TA-A10M-A10F-A10F-01	Free Hanging (In-Line)	A	2	10	Unshielded	M12	Male Pins	A	IP68 - Dust Tight Waterproof	M12	Distributor T-Shaped	Female Sockets (2)	Thermoplastic	Coupling Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Circular Connector Distributor T-Shaped 10/10 (2) Male Pins/Male Pins (2) Free Hanging (In-Line)
