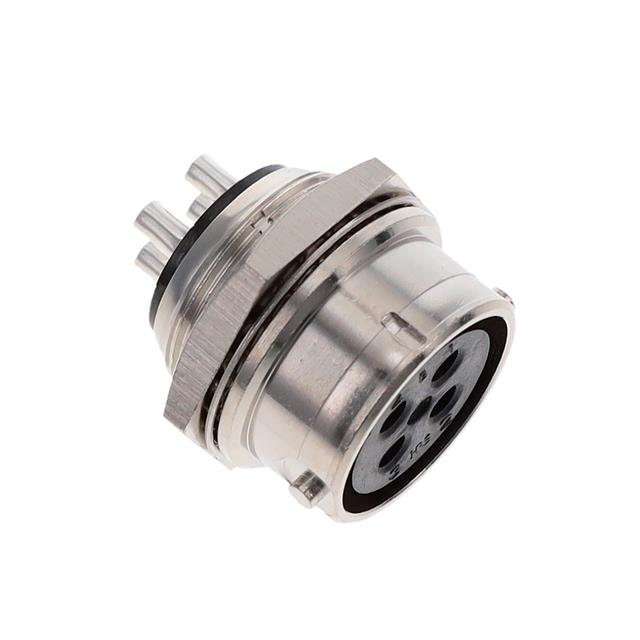

RM15QRD-4SA(81)

Active

Hirose Electric USA, Inc.

MULTI-CONTACT COMPACT CIRCULAR CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

MULTI-CONTACT COMPACT CIRCULAR CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Specification	RM15QRD-4SA(81)

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Material	Copper Alloy
Current Rating (Amps)	10 A
Fastening Type	Push-Twist
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	4
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	15
Shielding	Unshielded
Voltage Rating	700 VDC, 500 VAC

Part	Current Rating (Amps)	Number of Positions	Shell Finish	Mounting Feature	Shell Size - Insert	Voltage Rating	Contact Material	Insert Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Shielding	Shell Material	Fastening Type	Connector Type	Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. RM15QRD-4SA(81)	10 A	4	Nickel	Bulkhead - Rear Side Nut	15	500 VAC 700 VDC	Copper Alloy	Polyphenylene Sulfide (PPS)	UL94 V-0	-25 °C	85 °C	Keyed	Metal	Unshielded	Zinc Alloy	Push-Twist	Receptacle Female Sockets	Silver	Silver
Hirose Electric USA, Inc. RM15QRD-10PH(71)	5 A	10	Nickel	Bulkhead - Rear Side Nut	15	350 VAC 490 VDC	Copper Alloy	Diallyl Phthalate (DAP)	UL94 V-0	-25 °C	85 °C	Keyed	Metal		Brass	Push-Twist	Male Pins Receptacle	Silver	Silver	78.7 µin	2 µm
Hirose Electric USA, Inc. RM15QRD-12S(81)	5 A	12	Nickel	Bulkhead - Rear Side Nut	15	350 VAC 490 VDC	Copper Alloy	Diallyl Phthalate (DAP)	UL94 V-0	-25 °C	85 °C	Keyed	Metal	Unshielded	Brass	Push-Twist	Receptacle Female Sockets	Silver	Silver
Hirose Electric USA, Inc. RM15QRD-2SA(76)	10 A	2		Bulkhead - Rear Side Nut	15	600 VAC 840 VDC			UL94 V-0	-25 °C	85 °C	Keyed		Unshielded		Push-Twist	Receptacle Female Sockets	Silver	Silver
Hirose Electric USA, Inc. RM15QRD-12S(76)	5 A	12		Bulkhead - Rear Side Nut	15	350 VAC 490 VDC			UL94 V-0	-25 °C	85 °C	Keyed		Unshielded		Push-Twist	Receptacle Female Sockets	Silver	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Position Circular Connector Receptacle, Female Sockets Solder Cup
