RM15QRD-10PH(71)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 10P SOLDER CUP

Search across all available documentation for this part.

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 10P SOLDER CUP

Technical Specifications

Parameters and characteristics for this part

Specification	RM15QRD-10PH(71)

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Push-Twist
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Number of Positions	10
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Brass
Shell Size - Insert	15
Voltage Rating	350 VAC, 490 VDC

Part	Current Rating (Amps)	Number of Positions	Shell Finish	Mounting Feature	Shell Size - Insert	Voltage Rating	Contact Material	Insert Material	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Orientation	Primary Material	Shielding	Shell Material	Fastening Type	Connector Type	Color	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. RM15QRD-4SA(81)	10 A	4	Nickel	Bulkhead - Rear Side Nut	15	500 VAC 700 VDC	Copper Alloy	Polyphenylene Sulfide (PPS)	UL94 V-0	-25 °C	85 °C	Keyed	Metal	Unshielded	Zinc Alloy	Push-Twist	Receptacle Female Sockets	Silver	Silver
Hirose Electric USA, Inc. RM15QRD-10PH(71)	5 A	10	Nickel	Bulkhead - Rear Side Nut	15	350 VAC 490 VDC	Copper Alloy	Diallyl Phthalate (DAP)	UL94 V-0	-25 °C	85 °C	Keyed	Metal		Brass	Push-Twist	Male Pins Receptacle	Silver	Silver	78.7 µin	2 µm
Hirose Electric USA, Inc. RM15QRD-12S(81)	5 A	12	Nickel	Bulkhead - Rear Side Nut	15	350 VAC 490 VDC	Copper Alloy	Diallyl Phthalate (DAP)	UL94 V-0	-25 °C	85 °C	Keyed	Metal	Unshielded	Brass	Push-Twist	Receptacle Female Sockets	Silver	Silver
Hirose Electric USA, Inc. RM15QRD-2SA(76)	10 A	2		Bulkhead - Rear Side Nut	15	600 VAC 840 VDC			UL94 V-0	-25 °C	85 °C	Keyed		Unshielded		Push-Twist	Receptacle Female Sockets	Silver	Silver
Hirose Electric USA, Inc. RM15QRD-12S(76)	5 A	12		Bulkhead - Rear Side Nut	15	350 VAC 490 VDC			UL94 V-0	-25 °C	85 °C	Keyed		Unshielded		Push-Twist	Receptacle Female Sockets	Silver	Silver

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

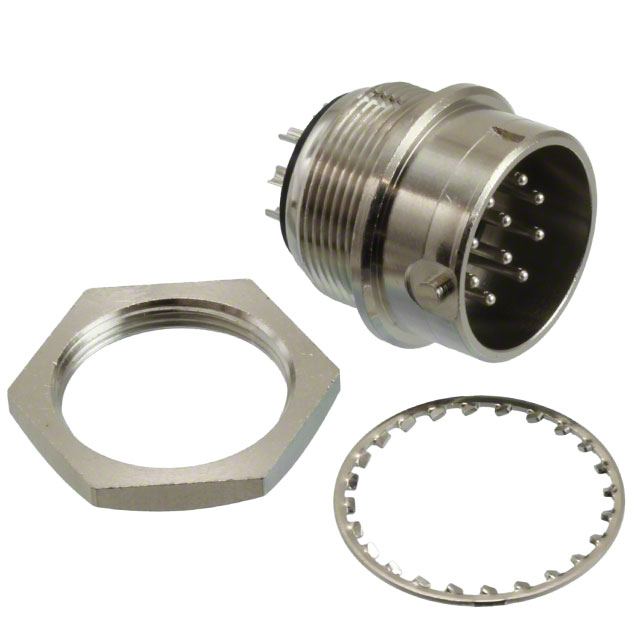

10 Position Circular Connector Receptacle, Male Pins Solder Cup
