SI-N8V2513B0WW

Obsolete

Samsung Semiconductor, Inc.

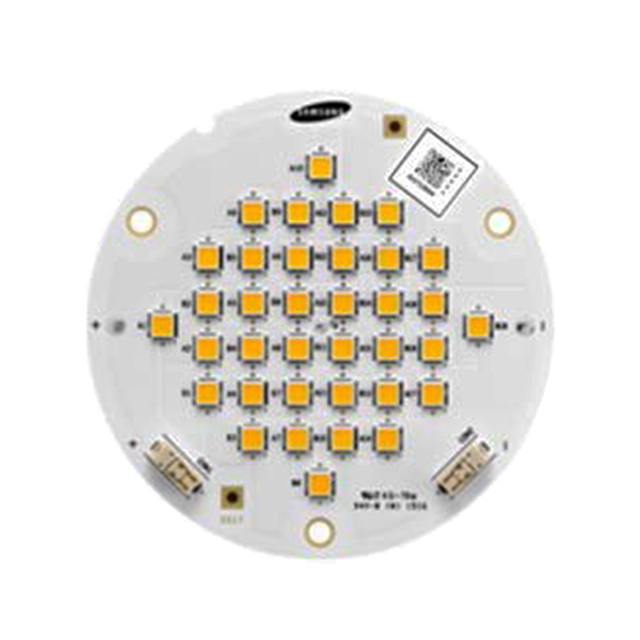

LED MOD RND-060D WHT RND 3000K

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED MOD RND-060D WHT RND 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	SI-N8V2513B0WW

CCT (K)	3000 K
Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	80
Current - Max [Max]	700 mA
Height [z]	3.7 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	123 lm/W
Luminous Flux @ Current/Temperature	3040 lm
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	35.5 V

Part	Lens Type	Viewing Angle	Type	Color	Configuration	Height [z]	Luminous Flux @ Current/Temperature	Current - Test	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Size / Dimension [diameter]	Features	Voltage - Forward (Vf) (Typ)	Temperature - Test	CCT (K)	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Size / Dimension [x]	Size / Dimension [y]
Samsung Semiconductor, Inc. SI-N8V1254B0WW	Flat	120 °	LED Module	Warm White	Round	5.2 mm	2130 lm	430 mA	178 lm/W	80	110 mm	With Connector	27.8 V
Samsung Semiconductor, Inc. SI-N8V0814B0WW	Flat	115 °	LED Module	Warm White	Round	5.75 mm		350 mA	125 lm/W	80	90 mm	With Connector	24 V	55 °C	3000 K
Samsung Semiconductor, Inc. SI-N8V1312B0WW	Flat	115 °	Chip On Board (COB)	Warm White	Round	6.1 mm	1120 lm	250 mA		80	50 mm	With Connector	33.5 V	75 °C	3000 K	350 mA	13.5 mm
Samsung Semiconductor, Inc. SI-N8V1113B1US	Flat	115 °	LED Module	Warm White	Square	12.5 mm	1160 lm		102 lm/W	80			120 VAC					55 mm	55 mm
Samsung Semiconductor, Inc. SI-N8V2513B0WW	Flat	115 °	LED Module	Warm White	Round	3.7 mm	3040 lm		123 lm/W	80			35.5 V		3000 K	700 mA
Samsung Semiconductor, Inc. SI-N8V3616E0WW		140 °	LED Module	Warm White	Square	2.2 mm	1070 lm	1.56 A	29 lm/W	80			23.4 V	65 °C		2.8 A		28 mm	28 mm
Samsung Semiconductor, Inc. SI-N8V0812B0WW	Flat	115 °	LED Module	Warm White	Round	3.7 mm	950 lm	350 mA	123 lm/W	80	41 mm		23.7 V			350 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

LED Lighting COBs Engines Modules LED Module Round-060D White, Warm Round
