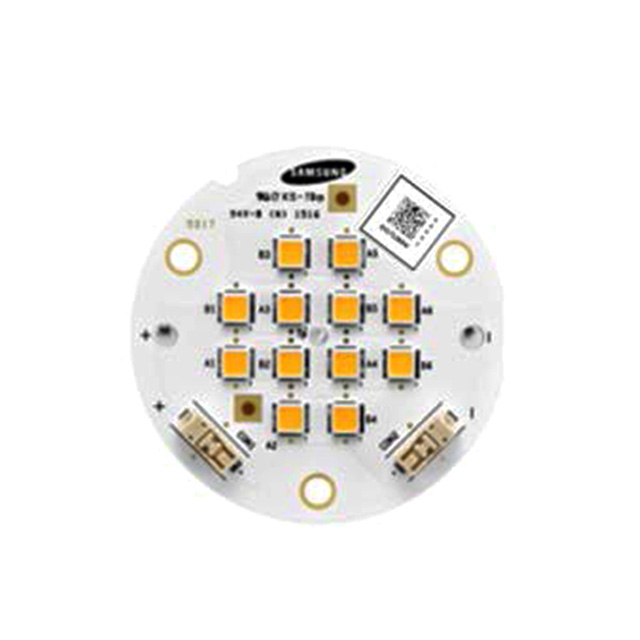

SI-N8V0812B0WW

Obsolete

Samsung Semiconductor, Inc.

LED MOD RND-040D WHT RND 3000K

Search across all available documentation for this part.

Obsolete

Samsung Semiconductor, Inc.

LED MOD RND-040D WHT RND 3000K

Technical Specifications

Parameters and characteristics for this part

Specification	SI-N8V0812B0WW

Color	White, Warm
Configuration	Round
CRI (Color Rendering Index)	80
Current - Max [Max]	350 mA
Current - Test	350 mA
Height [z]	3.7 mm
Lens Type	Flat
Lumens/Watt @ Current - Test	123 lm/W
Luminous Flux @ Current/Temperature	950 lm
Size / Dimension [diameter]	41 mm
Type	LED Module
Viewing Angle	115 °
Voltage - Forward (Vf) (Typ)	23.7 V

Part	Lens Type	Viewing Angle	Type	Color	Configuration	Height [z]	Luminous Flux @ Current/Temperature	Current - Test	Lumens/Watt @ Current - Test	CRI (Color Rendering Index)	Size / Dimension [diameter]	Features	Voltage - Forward (Vf) (Typ)	Temperature - Test	CCT (K)	Current - Max [Max]	Light Emitting Surface (LES) [diameter]	Size / Dimension [x]	Size / Dimension [y]
Samsung Semiconductor, Inc. SI-N8V1254B0WW	Flat	120 °	LED Module	Warm White	Round	5.2 mm	2130 lm	430 mA	178 lm/W	80	110 mm	With Connector	27.8 V
Samsung Semiconductor, Inc. SI-N8V0814B0WW	Flat	115 °	LED Module	Warm White	Round	5.75 mm		350 mA	125 lm/W	80	90 mm	With Connector	24 V	55 °C	3000 K
Samsung Semiconductor, Inc. SI-N8V1312B0WW	Flat	115 °	Chip On Board (COB)	Warm White	Round	6.1 mm	1120 lm	250 mA		80	50 mm	With Connector	33.5 V	75 °C	3000 K	350 mA	13.5 mm
Samsung Semiconductor, Inc. SI-N8V1113B1US	Flat	115 °	LED Module	Warm White	Square	12.5 mm	1160 lm		102 lm/W	80			120 VAC					55 mm	55 mm
Samsung Semiconductor, Inc. SI-N8V2513B0WW	Flat	115 °	LED Module	Warm White	Round	3.7 mm	3040 lm		123 lm/W	80			35.5 V		3000 K	700 mA
Samsung Semiconductor, Inc. SI-N8V3616E0WW		140 °	LED Module	Warm White	Square	2.2 mm	1070 lm	1.56 A	29 lm/W	80			23.4 V	65 °C		2.8 A		28 mm	28 mm
Samsung Semiconductor, Inc. SI-N8V0812B0WW	Flat	115 °	LED Module	Warm White	Round	3.7 mm	950 lm	350 mA	123 lm/W	80	41 mm		23.7 V			350 mA

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module Round-040D White, Warm Round
