8000-410-LF

Active

TWIN INDUSTRIES

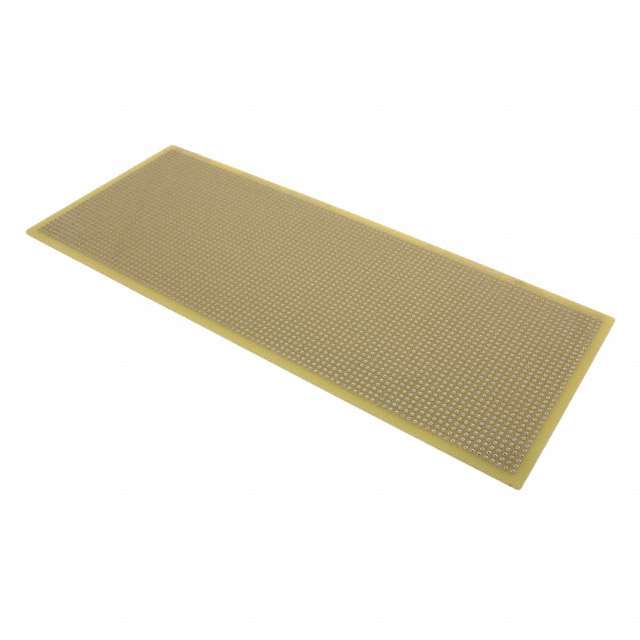

PROTOTYPING BOARD, FR4, EPOXY GLASS COMPOSITE, 1.575MM, 254MM X 101.6MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTechnical Data Sheet EN Datasheet

8000-410-LF

Active

TWIN INDUSTRIES

PROTOTYPING BOARD, FR4, EPOXY GLASS COMPOSITE, 1.575MM, 254MM X 101.6MM

Deep-Dive with AI

DocumentsTechnical Data Sheet EN Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8000-410-LF

Board Thickness	0.062 in
Board Thickness	0.0625 in
Board Thickness	1.57 mm
Circuit Pattern	Pad Per Hole (Round)
Hole Diameter [diameter]	0.037 in
Hole Diameter [diameter]	0.94 mm
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Proto Board Type	Breadboard, General Purpose
Size / Dimension [x]	254 mm
Size / Dimension [x]	10 in
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm

8000 Series

Part	Board Thickness	Board Thickness	Board Thickness	Pitch [x]	Pitch [x]	Proto Board Type	Hole Diameter [diameter]	Hole Diameter [diameter]	Circuit Pattern	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
TWIN INDUSTRIES 8000-4565-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	165.1 mm	4.5 in	114.3 mm	6.5 in
TWIN INDUSTRIES 8000-45	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	127 mm	4 "	101.6 mm	5 in
TWIN INDUSTRIES 8000-1020	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	508 mm		254 mm
TWIN INDUSTRIES 8000-1010-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	254 mm	10 in	254 mm	10 in
TWIN INDUSTRIES 8000-410-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	254 mm	4 "	101.6 mm	10 in
TWIN INDUSTRIES 8000-1010	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	254 mm	10 in	254 mm	10 in
TWIN INDUSTRIES 8000-45-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	127 mm	4 "	101.6 mm	5 in
TWIN INDUSTRIES 8000-2MM-3U				2 mm	0.079 in	Breadboard General Purpose			Pad Per Hole (Round)	160.02 mm	3.94 in	100.08 mm	6.3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 25.50
		5	$ 24.99
		10	$ 24.48
		25	$ 23.97
		50	$ 23.46
Newark	Each	1	$ 25.50
		5	$ 24.99
		10	$ 24.48
		25	$ 23.97
		50	$ 23.46

Description

General part information

8000 Series

The 8000-410-LF is a Prototyping Board made of epoxy glass composite. Standard tin/lead solder finish has been replaced with gold plating. Lead-free boards are useful for developing new lead-free products, transitioning existing products to lead-free versions and for developing lead-free solder/assembly techniques.

Documents

Technical documentation and resources

Technical Data Sheet EN

Datasheet
