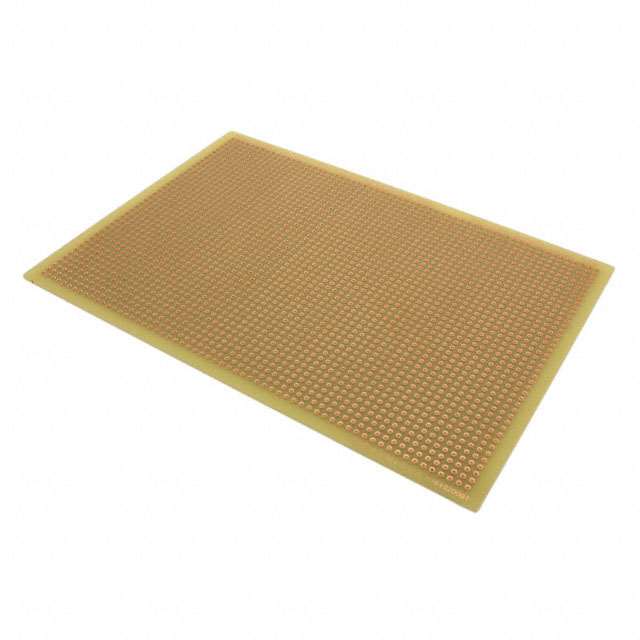

8000-4565-LF

Active

TWIN INDUSTRIES

PROTOTYPING BOARD, FR4, EPOXY GLASS COMPOSITE, 1.575MM, 165.1MM X 114.3MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

8000-4565-LF

Active

TWIN INDUSTRIES

PROTOTYPING BOARD, FR4, EPOXY GLASS COMPOSITE, 1.575MM, 165.1MM X 114.3MM

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	8000-4565-LF

Board Thickness	0.062 in
Board Thickness	0.0625 in
Board Thickness	1.57 mm
Circuit Pattern	Pad Per Hole (Round)
Hole Diameter [diameter]	0.037 in
Hole Diameter [diameter]	0.94 mm
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Proto Board Type	Breadboard, General Purpose
Size / Dimension [x]	165.1 mm
Size / Dimension [x]	6.5 in
Size / Dimension [y]	4.5 in
Size / Dimension [y]	114.3 mm

8000 Series

Part	Board Thickness	Board Thickness	Board Thickness	Pitch [x]	Pitch [x]	Proto Board Type	Hole Diameter [diameter]	Hole Diameter [diameter]	Circuit Pattern	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]
TWIN INDUSTRIES 8000-4565-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	165.1 mm	4.5 in	114.3 mm	6.5 in
TWIN INDUSTRIES 8000-45	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	127 mm	4 "	101.6 mm	5 in
TWIN INDUSTRIES 8000-1020	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	508 mm		254 mm
TWIN INDUSTRIES 8000-1010-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	254 mm	10 in	254 mm	10 in
TWIN INDUSTRIES 8000-410-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	254 mm	4 "	101.6 mm	10 in
TWIN INDUSTRIES 8000-1010	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	254 mm	10 in	254 mm	10 in
TWIN INDUSTRIES 8000-45-LF	0.062 in	0.0625 in	1.57 mm	2.54 mm	0.1 in	Breadboard General Purpose	0.037 in	0.94 mm	Pad Per Hole (Round)	127 mm	4 "	101.6 mm	5 in
TWIN INDUSTRIES 8000-2MM-3U				2 mm	0.079 in	Breadboard General Purpose			Pad Per Hole (Round)	160.02 mm	3.94 in	100.08 mm	6.3 "

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 21.25
		5	$ 20.83
		10	$ 20.40
		25	$ 19.98
		50	$ 19.55

Description

General part information

8000 Series

The 8000-4565-LF is a Prototype Board provides a versatile solution for electronic hardware development projects. It is made with high quality FR4 material.
