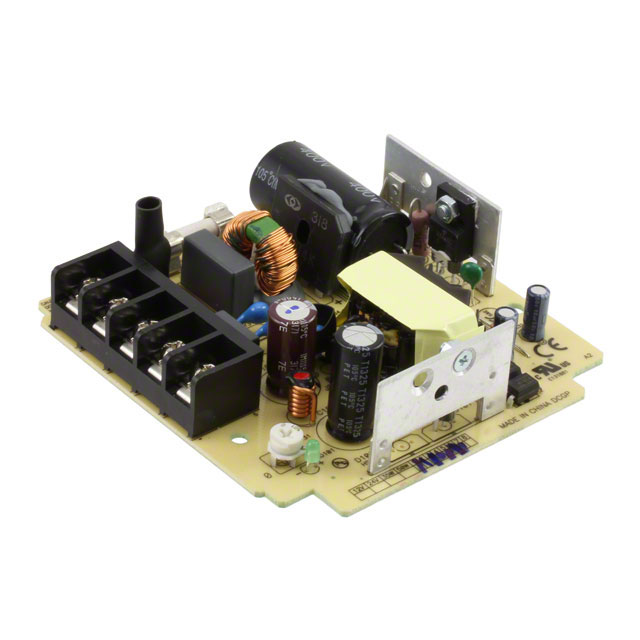

PMB-12V50W1AA

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 50W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 50W

Technical Specifications

Parameters and characteristics for this part

Specification	PMB-12V50W1AA

Applications	ITE (Commercial)
Approval Agency	CCC, CE, cURus, TUVgs, CB
Current - Output 1	4.17 A
Efficiency	83 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	50 W
Size / Dimension [x]	98 mm
Size / Dimension [x]	3.86 in
Size / Dimension [y]	3.82 in
Size / Dimension [y]	97 mm
Size / Dimension [z]	38 mm
Size / Dimension [z]	1.5 "
Type	Open Frame
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Approval Agency	Mounting Type	Efficiency	Features	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Isolation	Current - Output 1	Power (Watts)	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]
Delta Electronics PMB-12V35W1AH	CB CCC CE cURus TUV	Chassis Mount	84 %	Adjustable Output Universal Input	ITE (Commercial)	Enclosed	-10 °C	70 °C	1	3000 V	2.92 A	35 W	12 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm
Delta Electronics PMB-12V50W1AA	CB CCC CE cURus TUVgs	Chassis Mount	83 %	Adjustable Output Universal Input	ITE (Commercial)	Open Frame	-10 °C	70 °C	1	3000 V	4.17 A	50 W	12 V	3.82 in	3.86 in	1.5 "	98 mm	97 mm	38 mm	90 VAC	264 VAC
