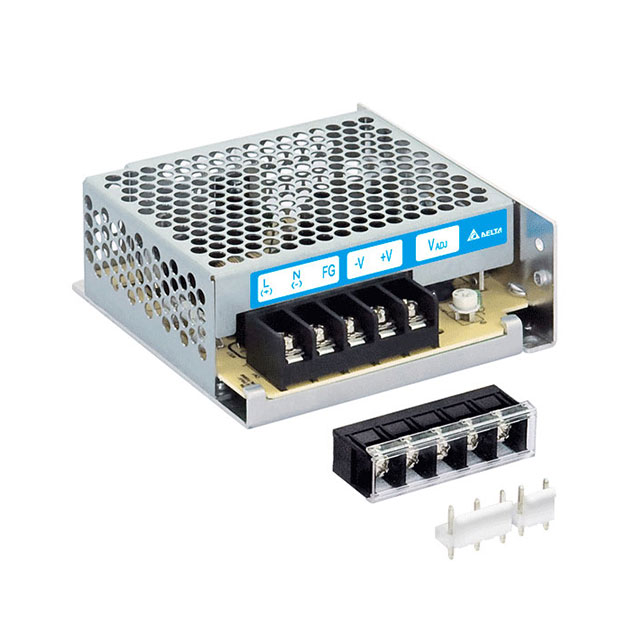

PMB-12V35W1AH

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 35W

Search across all available documentation for this part.

Obsolete

Delta Electronics

AC/DC CONVERTER 12V 35W

Technical Specifications

Parameters and characteristics for this part

Specification	PMB-12V35W1AH

Applications	ITE (Commercial)
Approval Agency	CE, CB, CCC, cURus, TUV
Current - Output 1	2.92 A
Efficiency	84 %
Features	Adjustable Output, Universal Input
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-10 °C
Power (Watts)	35 W
Size / Dimension [x]	3.86 in
Size / Dimension [x]	98 mm
Size / Dimension [y]	3.86 in
Size / Dimension [y]	98 mm
Size / Dimension [z]	1.5 "
Size / Dimension [z]	38 mm
Type	Enclosed
Voltage - Isolation	3000 V
Voltage - Output 1	12 V

Part	Approval Agency	Mounting Type	Efficiency	Features	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Outputs	Voltage - Isolation	Current - Output 1	Power (Watts)	Voltage - Output 1	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Voltage - Input [Min]	Voltage - Input [Max]
Delta Electronics PMB-12V35W1AH	CB CCC CE cURus TUV	Chassis Mount	84 %	Adjustable Output Universal Input	ITE (Commercial)	Enclosed	-10 °C	70 °C	1	3000 V	2.92 A	35 W	12 V	3.86 in	3.86 in	1.5 "	98 mm	98 mm	38 mm
Delta Electronics PMB-12V50W1AA	CB CCC CE cURus TUVgs	Chassis Mount	83 %	Adjustable Output Universal Input	ITE (Commercial)	Open Frame	-10 °C	70 °C	1	3000 V	4.17 A	50 W	12 V	3.82 in	3.86 in	1.5 "	98 mm	97 mm	38 mm	90 VAC	264 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Enclosed AC DC Converters 1 Output 12V 85 ~ 264 VAC Input
