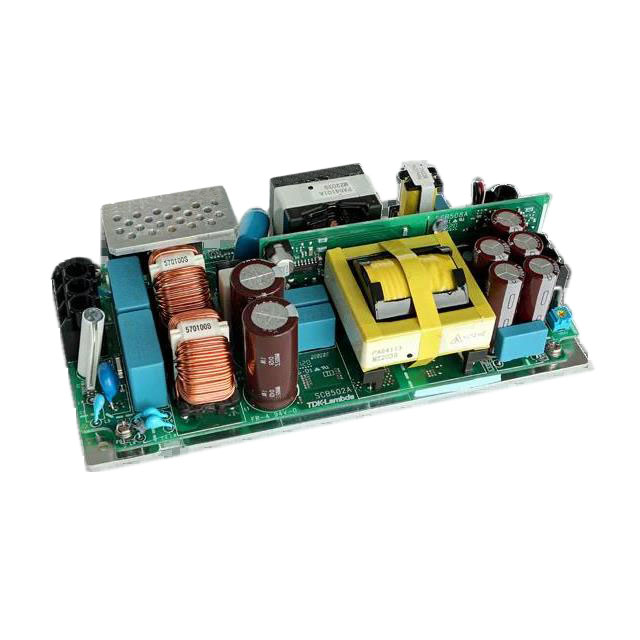

CUS350MP-1000-30

Active

TDK-LAMBDA

POWER SUPPLY, AC-DC, 30V, 11.65A ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

CUS350MP-1000-30

Active

TDK-LAMBDA

POWER SUPPLY, AC-DC, 30V, 11.65A ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	CUS350MP-1000-30

Applications	ITE (Commercial), Medical
Approval Agency	CE
Current - Output 1	11.65 A
Efficiency	94 %
Features	Baseplate, Remote On/Off, Remote Sense, Standby Output, Adjustable Output
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Power (Watts)	498 W
Power (Watts)	350 W
Size / Dimension [x]	183 mm
Size / Dimension [x]	7.2 in
Size / Dimension [y]	3.46 "
Size / Dimension [y]	88 mm
Size / Dimension [z]	1.73 "
Size / Dimension [z]	44 mm
Standard Number	60601-1, 62368-1
Type	Open Frame
Voltage - Input [Max]	370 VDC, 265 VAC
Voltage - Input [Min]	120 VDC, 85 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	30 V

CUS350MP Series

Part	Voltage - Output 1	Type	Efficiency	Operating Temperature [Min]	Operating Temperature [Max]	Approval Agency	Standard Number	Applications	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Mounting Type	Current - Output 1	Power (Watts)	Power (Watts)	Number of Outputs	Voltage - Input [Max]	Voltage - Input [Min]	Features	Voltage - Isolation
TDK-LAMBDA CUS350MP-1000-24/CO2	24 V	Conformal Coated Open Frame	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.92 in	49.5 mm	212.1 mm	99.6 mm	8.35 in	1.95 in	Chassis Mount	14.6 A	350 W	499 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output
TDK-LAMBDA CUS350MP-1000-30/A	30 V	Enclosed	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.46 "	44 mm	183 mm	88 mm	7.2 in	1.73 "	Chassis Mount	11.65 A	350 W	498 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output	4000 V
TDK-LAMBDA CUS350MP-1000-30/CO2	30 V	Conformal Coated Open Frame	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.92 in	49.5 mm	212.1 mm	99.6 mm	8.35 in	1.95 in	Chassis Mount	11.65 A	350 W	498 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output	4000 V
TDK-LAMBDA CUS350MP-1000-24/SF	24 V	Open Frame	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.46 "	44 mm	183 mm	88 mm	7.2 in	1.73 "	Chassis Mount	14.6 A	350 W	499 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output	4000 V
TDK-LAMBDA CUS350MP-1000-48/TA	48 V	Enclosed	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.46 "	44 mm	183 mm	88 mm	7.2 in	1.73 "	Chassis Mount	7.3 A	350 W	499 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output	4000 V
TDK-LAMBDA CUS350MP-1000-30	30 V	Open Frame	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.46 "	44 mm	183 mm	88 mm	7.2 in	1.73 "	Chassis Mount	11.65 A	350 W	498 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Baseplate Remote On/Off Remote Sense Standby Output	4000 V
TDK-LAMBDA CUS350MP-1000-48/T	48 V	Open Frame	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.46 "	44 mm	183 mm	88 mm	7.2 in	1.73 "	Chassis Mount	7.3 A	350 W	499 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output	4000 V
TDK-LAMBDA CUS350MP-1000-48/CO2	48 V	Conformal Coated Open Frame	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.92 in	49.5 mm	212.1 mm	99.6 mm	8.35 in	1.95 in	Chassis Mount	7.3 A	350 W	499 W	1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output	4000 V
TDK-LAMBDA CUS350MP-1000-36/TA	36 V	Enclosed	94 %	-20 °C	70 °C	CE	60601-1 62368-1	ITE (Commercial) Medical	3.46 "	44 mm	183 mm	88 mm	7.2 in	1.73 "	Chassis Mount	9.7 A	349 W 497 W		1	265 VAC 370 VDC	85 VAC 120 VDC	Adjustable Output Remote On/Off Remote Sense Standby Output	4000 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 221.55
		10	$ 205.73
		25	$ 200.45
		50	$ 195.18
Newark	Each	1	$ 221.55
		10	$ 205.73
		25	$ 200.45
		50	$ 195.18

Description

General part information

CUS350MP Series

Open Frame AC DC Converters 1 Output 30V 85 ~ 265 VAC, 120 ~ 370 VDC Input
