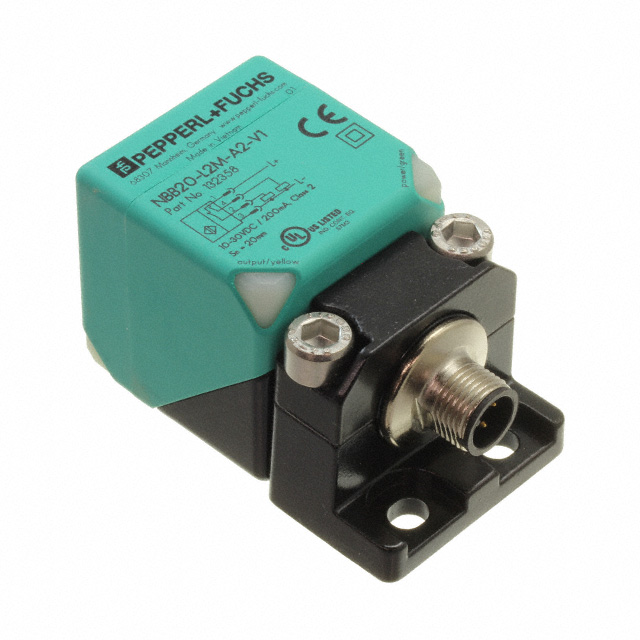

NBB20-L2M-A2-V1

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 20 MM, RECTANGULAR, PNP, 10 TO 30 VDC, CONNECTOR

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 20 MM, RECTANGULAR, PNP, 10 TO 30 VDC, CONNECTOR

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Material - Body	Output Type	Shielding	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Termination Style
PEPPERL+FUCHS NBB20-U1-UU	0.787 in	20 mm	LED	253 VAC 300 VDC	20 VAC 20 VDC	Inductive	Polyamide (PA)	SCR-NC/NO 2-Wire	Unshielded	IP67	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-U4-UU	0.787 in	20 mm	LED	253 VAC 300 VDC	20 VAC 20 VDC	Inductive	Polyamide (PA)	SCR-NC/NO 2-Wire	Unshielded	IP67	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-U1-A2	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	4-Wire PNP-NC/NO	Unshielded	IP68 IP69K	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-L2-E2-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	PNP-NO 3-Wire	Unshielded	IP69K	-25 °C	85 °C	Module	Connector
PEPPERL+FUCHS NBB20-L2M-A2-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	4-Wire PNP-NC/NO	Unshielded	IP69K	-25 °C	85 °C	Module	Connector
PEPPERL+FUCHS NBB20-U1-E2	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	PNP-NO 3-Wire	Unshielded	IP68 IP69K	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-L3M-A2-C3-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Zinc Die-Cast	4-Wire PNP-NC/NO	Unshielded	IP67	-25 °C	85 °C	Module	Connector
PEPPERL+FUCHS NBB20-L2M-E2-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	PNP-NO 3-Wire	Unshielded	IP69K	-25 °C	85 °C	Module	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE PROXIMITY SENSOR, BASIC SERIES, 20 MM, RECTANGULAR, PNP, 10 TO 30 VDC, CONNECTOR
