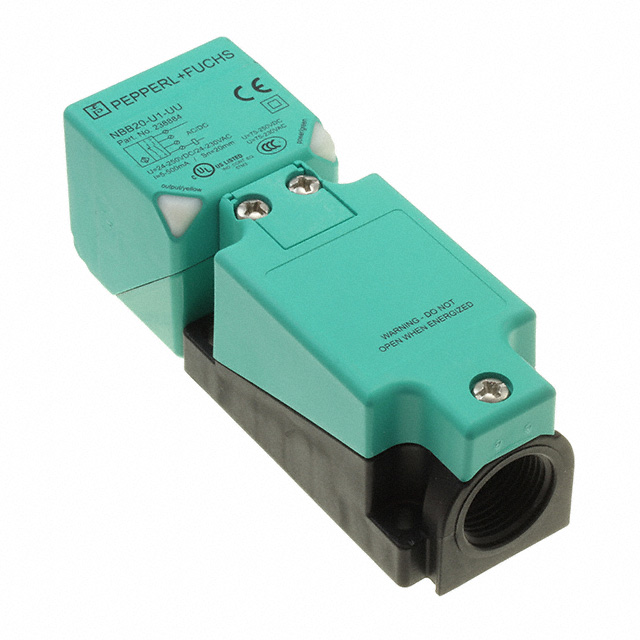

NBB20-U1-UU

Active

PEPPERL+FUCHS

INDUCTIVE SEN 20MM NO/NC

Search across all available documentation for this part.

Active

PEPPERL+FUCHS

INDUCTIVE SEN 20MM NO/NC

Technical Specifications

Parameters and characteristics for this part

Part	Sensing Distance	Sensing Distance	Indicator [custom]	Voltage - Supply [Max]	Voltage - Supply [Min]	Sensor Type	Material - Body	Output Type	Shielding	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Termination Style
PEPPERL+FUCHS NBB20-U1-UU	0.787 in	20 mm	LED	253 VAC 300 VDC	20 VAC 20 VDC	Inductive	Polyamide (PA)	SCR-NC/NO 2-Wire	Unshielded	IP67	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-U4-UU	0.787 in	20 mm	LED	253 VAC 300 VDC	20 VAC 20 VDC	Inductive	Polyamide (PA)	SCR-NC/NO 2-Wire	Unshielded	IP67	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-U1-A2	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	4-Wire PNP-NC/NO	Unshielded	IP68 IP69K	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-L2-E2-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	PNP-NO 3-Wire	Unshielded	IP69K	-25 °C	85 °C	Module	Connector
PEPPERL+FUCHS NBB20-L2M-A2-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	4-Wire PNP-NC/NO	Unshielded	IP69K	-25 °C	85 °C	Module	Connector
PEPPERL+FUCHS NBB20-U1-E2	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	PNP-NO 3-Wire	Unshielded	IP68 IP69K	-25 °C	85 °C	Module
PEPPERL+FUCHS NBB20-L3M-A2-C3-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Zinc Die-Cast	4-Wire PNP-NC/NO	Unshielded	IP67	-25 °C	85 °C	Module	Connector
PEPPERL+FUCHS NBB20-L2M-E2-V1	0.787 in	20 mm	LED	30 VDC	10 VDC	Inductive	Polyamide (PA)	PNP-NO 3-Wire	Unshielded	IP69K	-25 °C	85 °C	Module	Connector

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

INDUCTIVE SEN 20MM NO/NC
