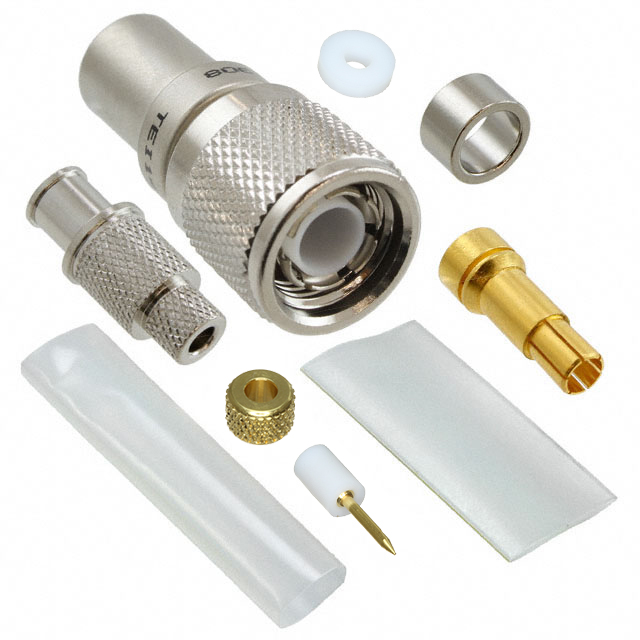

PL375C-303

Active

Cinch Connectivity Solutions Trompeter

CONN TRT PLUG STR CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

PL375C-303

Active

Cinch Connectivity Solutions Trompeter

CONN TRT PLUG STR CRIMP

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PL375C-303

Body Finish	Nickel
Body Material	Brass
Cable Group	Raychem 7528A5314
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TRT, Triaxial
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Crimp
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Includes	1 Strain Relief, 1 Connector, 1 Heat Shrink
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Crimp
Voltage Rating	400 V

PL375 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Voltage Rating	Connector Type	Mounting Type	Shield Termination	Center Contact Plating	Center Contact Material	Cable Group	Connector Style	Body Finish	Frequency - Max [Max]	Contact Termination	Housing Color	Number of Ports	Mating Cycles	Includes
Cinch Connectivity Solutions Trompeter PL375-23	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	Microdot 250-3884	Triaxial TRT	Nickel	500 MHz	Solder	Silver	1
Cinch Connectivity Solutions Trompeter PL375-9	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	BL1242 BL982 Times BL782 TWC-124-2 TWC-78-2	TRT Twinaxial	Nickel	500 MHz	Solder	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375-7	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	TRC-50-2 TRC-75-2	Triaxial TRT	Nickel	500 MHz	Solder	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375CS-214	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	TWC-124-2	TRT Twinaxial	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL375-32	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	TRC-50-1	Triaxial TRT	Nickel	500 MHz	Solder	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375C-303	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	Raychem 7528A5314	Triaxial TRT	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Heat Shrink 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL375MC-201	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	M17/176-00002	TRT Twinaxial	Nickel	500 MHz	Crimp	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375C-222	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	Raychem 10613	TRT Twinaxial	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Heat Shrink 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL375C-302	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	Grumman GCB75GB1	Triaxial TRT	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Heat Shrink 1 Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 83.25
		10	$ 64.77
		25	$ 59.14

Description

General part information

PL375 Series

TRT, Triaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
