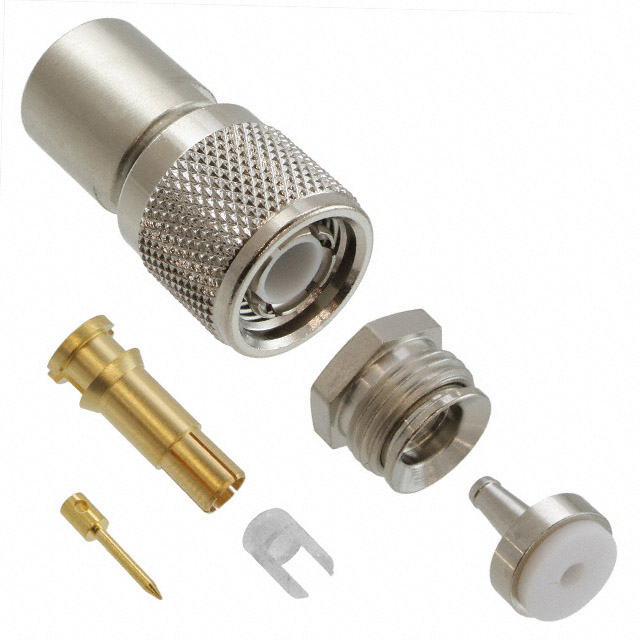

PL375-9

Active

Cinch Connectivity Solutions Trompeter

CONN TRT PLUG STR SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

PL375-9

Active

Cinch Connectivity Solutions Trompeter

CONN TRT PLUG STR SOLDER

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PL375-9

Body Finish	Nickel
Body Material	Brass
Cable Group	BL1242, Times BL782, TWC-78-2, BL982, TWC-124-2
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TRT, Twinaxial
Connector Type	Plug, Male Pin (Concentric)
Contact Termination	Solder
Frequency - Max [Max]	500 MHz
Housing Color	Silver
Impedance	Non-Constant
Mating Cycles	500
Mounting Type	Free Hanging (In-Line)
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Wrench Clamp
Voltage Rating	400 V

PL375 Series

Part	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Body Material	Voltage Rating	Connector Type	Mounting Type	Shield Termination	Center Contact Plating	Center Contact Material	Cable Group	Connector Style	Body Finish	Frequency - Max [Max]	Contact Termination	Housing Color	Number of Ports	Mating Cycles	Includes
Cinch Connectivity Solutions Trompeter PL375-23	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	Microdot 250-3884	Triaxial TRT	Nickel	500 MHz	Solder	Silver	1
Cinch Connectivity Solutions Trompeter PL375-9	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	BL1242 BL982 Times BL782 TWC-124-2 TWC-78-2	TRT Twinaxial	Nickel	500 MHz	Solder	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375-7	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	TRC-50-2 TRC-75-2	Triaxial TRT	Nickel	500 MHz	Solder	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375CS-214	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	TWC-124-2	TRT Twinaxial	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL375-32	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Wrench Clamp	Gold	Beryllium Copper	TRC-50-1	Triaxial TRT	Nickel	500 MHz	Solder	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375C-303	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	Raychem 7528A5314	Triaxial TRT	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Heat Shrink 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL375MC-201	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	M17/176-00002	TRT Twinaxial	Nickel	500 MHz	Crimp	Silver	1	500
Cinch Connectivity Solutions Trompeter PL375C-222	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	Raychem 10613	TRT Twinaxial	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Heat Shrink 1 Strain Relief
Cinch Connectivity Solutions Trompeter PL375C-302	-65 ░C	165 °C	Non-Constant	Brass	400 V	Plug Male Pin (Concentric)	Free Hanging (In-Line)	Crimp	Gold	Beryllium Copper	Grumman GCB75GB1	Triaxial TRT	Nickel	500 MHz	Crimp	Silver	1	500	1 Connector 1 Heat Shrink 1 Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 43.09
		10	$ 33.37
		25	$ 30.29
		50	$ 28.41

Description

General part information

PL375 Series

TRT, Twinaxial Connector Plug, Male Pin (Concentric) Non-Constant Free Hanging (In-Line) Solder

Documents

Technical documentation and resources

No documents available
