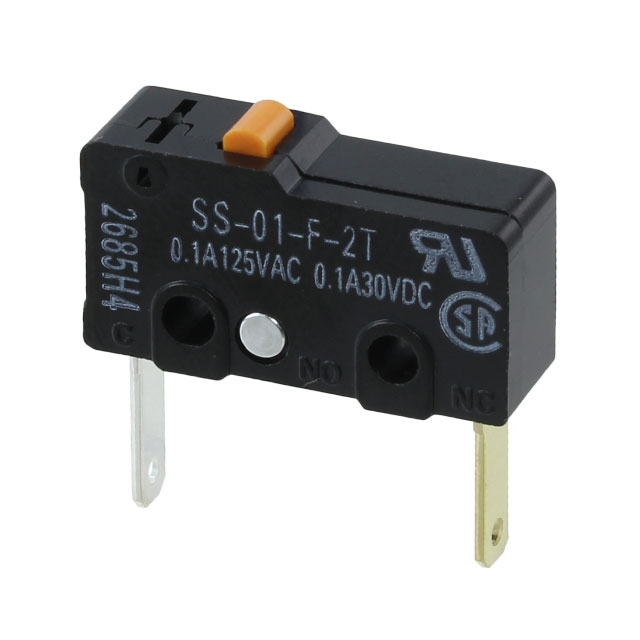

SS-01-F2T

Active

Omron Electronics Inc-EMC Div

SWITCH SNP ACT SPST-NC 0.1A 125V

Deep-Dive with AI

DocumentsHow to Read Date Codes Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-01-F2T

Actuator Type	Round (Pin Plunger)
Circuit	SPST-NC
Current Rating (Amps)	100 mA
Differential Travel	0.1 mm
Differential Travel	0.004 in
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	30000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Position	8.4 mm
Operating Position	0.33 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overtravel	0.02 in
Overtravel	0.5 mm
Pretravel	0.02 in
Pretravel	0.5 mm
Release Force	4.079 gf
Switch Function	On-Mom
Termination Style	Quick Connect - 0.110" (2.8mm)
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SS-01 Series

Part	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Position	Operating Position	Circuit	Switch Function	Actuator Type	Mounting Type	Current Rating (Amps)	Overtravel	Overtravel	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Mechanical Life	Release Force	Ingress Protection	Pretravel	Pretravel	Operating Force
Omron Electronics Inc-EMC Div SS-01-E	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	2.039 gf	IP40	0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-01-E-2	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NC	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	2.039 gf	IP40	0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-01GPT	0.15 mm	0.006 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.015 "	0.4 mm	200000 Cycles	-25 °C	85 °C	30 V	Quick Connect - 0.110" (2.8mm)	1000000 Cycles	20 gf	IP40	0.024 in	0.6 mm	153 gf
Omron Electronics Inc-EMC Div SS-01-3T	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NO	Off-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Quick Connect - 0.110" (2.8mm)	30000000 Cycles	25 gf	IP40	0.02 in	0.5 mm	150 gf
Omron Electronics Inc-EMC Div SS-01GPB	0.15 mm	0.006 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Through Hole	100 mA	0.015 "	0.4 mm	200000 Cycles	-25 °C	85 °C	30 V	PC Pin	1000000 Cycles	20 gf	IP40	0.024 in	0.6 mm	153 gf
Omron Electronics Inc-EMC Div SS-01GL	0.8 mm	0.031 "	125 V	8.8 mm	0.345 in	SPDT	On-Mom	Lever Straight	Chassis Mount	100 mA	0.047 "	1.2 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	6.118 gf	IP40			50 gf
Omron Electronics Inc-EMC Div SS-01-F2T	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NC	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Quick Connect - 0.110" (2.8mm)	30000000 Cycles	4.079 gf	IP40	0.02 in	0.5 mm	50 gf
Omron Electronics Inc-EMC Div SS-01-ED	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Through Hole	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	PC Pin	30000000 Cycles	2.039 gf	IP40	0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-01-3	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NO	Off-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	25 gf	IP40	0.02 in	0.5 mm	150 gf
Omron Electronics Inc-EMC Div SS-01-F	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	4.079 gf	IP40	0.02 in	0.5 mm	50 gf
