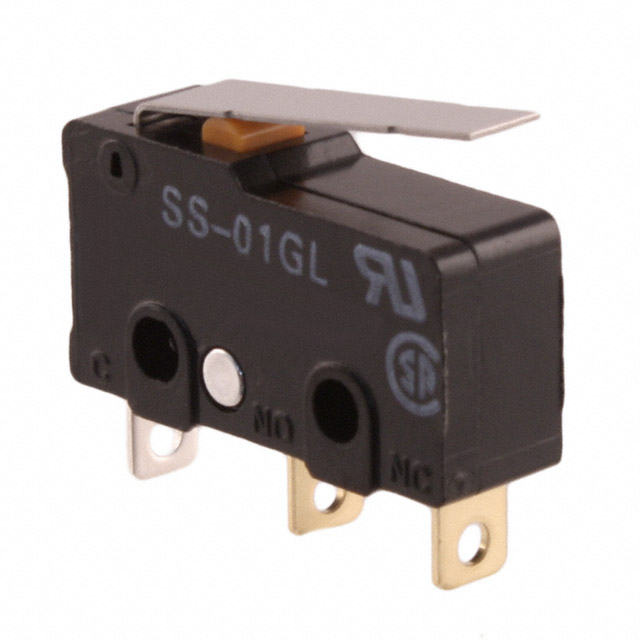

SS-01GL

Active

Omron Electronics Inc-EMC Div

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsDatasheet How to Read Date Codes

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SS-01GL

Actuator Type	Lever, Straight
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.8 mm
Differential Travel	0.031 "
Electrical Life	200000 Cycles
Ingress Protection	IP40
Mechanical Life	30000000 Cycles
Mounting Type	Chassis Mount
Operating Force	50 gf
Operating Position	8.8 mm
Operating Position	0.345 in
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Overtravel	1.2 mm
Overtravel	0.047 "
Release Force	6.118 gf
Switch Function	On-Mom
Termination Style	Solder Lug
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

SS-01 Series

Part	Differential Travel	Differential Travel	Voltage Rating - AC	Operating Position	Operating Position	Circuit	Switch Function	Actuator Type	Mounting Type	Current Rating (Amps)	Overtravel	Overtravel	Electrical Life	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating - DC	Termination Style	Mechanical Life	Release Force	Ingress Protection	Pretravel	Pretravel	Operating Force
Omron Electronics Inc-EMC Div SS-01-E	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	2.039 gf	IP40	0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-01-E-2	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NC	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	2.039 gf	IP40	0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-01GPT	0.15 mm	0.006 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.015 "	0.4 mm	200000 Cycles	-25 °C	85 °C	30 V	Quick Connect - 0.110" (2.8mm)	1000000 Cycles	20 gf	IP40	0.024 in	0.6 mm	153 gf
Omron Electronics Inc-EMC Div SS-01-3T	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NO	Off-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Quick Connect - 0.110" (2.8mm)	30000000 Cycles	25 gf	IP40	0.02 in	0.5 mm	150 gf
Omron Electronics Inc-EMC Div SS-01GPB	0.15 mm	0.006 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Through Hole	100 mA	0.015 "	0.4 mm	200000 Cycles	-25 °C	85 °C	30 V	PC Pin	1000000 Cycles	20 gf	IP40	0.024 in	0.6 mm	153 gf
Omron Electronics Inc-EMC Div SS-01GL	0.8 mm	0.031 "	125 V	8.8 mm	0.345 in	SPDT	On-Mom	Lever Straight	Chassis Mount	100 mA	0.047 "	1.2 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	6.118 gf	IP40			50 gf
Omron Electronics Inc-EMC Div SS-01-F2T	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NC	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Quick Connect - 0.110" (2.8mm)	30000000 Cycles	4.079 gf	IP40	0.02 in	0.5 mm	50 gf
Omron Electronics Inc-EMC Div SS-01-ED	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Through Hole	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	PC Pin	30000000 Cycles	2.039 gf	IP40	0.02 in	0.5 mm
Omron Electronics Inc-EMC Div SS-01-3	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPST-NO	Off-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	25 gf	IP40	0.02 in	0.5 mm	150 gf
Omron Electronics Inc-EMC Div SS-01-F	0.1 mm	0.004 in	125 V	8.4 mm	0.33 in	SPDT	On-Mom	Round (Pin Plunger)	Chassis Mount	100 mA	0.02 in	0.5 mm	200000 Cycles	-25 °C	85 °C	30 V	Solder Lug	30000000 Cycles	4.079 gf	IP40	0.02 in	0.5 mm	50 gf
