5130.2201 - 5130.2201

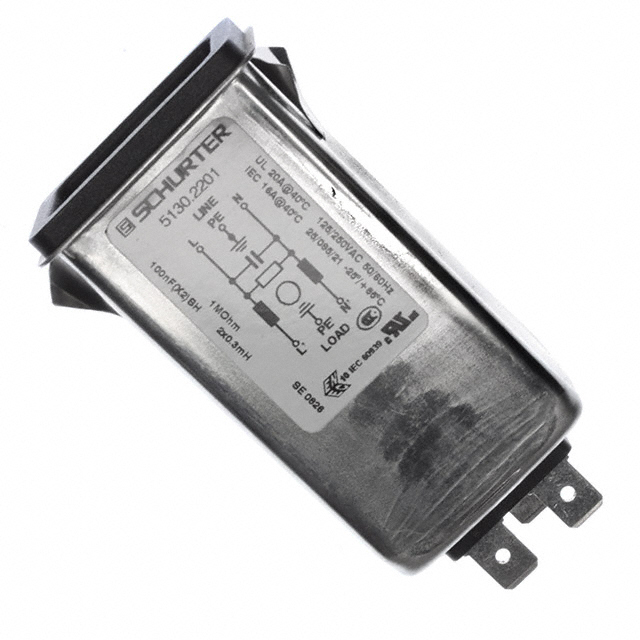

5130.2201

Active
SCHURTER Inc.

FILTERED IEC POWER ENTRY MODULE, IEC C20, MEDICAL, 16 A, 250 VAC

Deep-Dive with AI

DocumentsPEM Filter OverviewDatasheet+2

Technical Specifications

Parameters and characteristics for this part

Specification5130.2201
Accomodates a FuseFalse
Approval AgencyENEC, cULus
Connector StyleIEC 320-C20
Connector TypeMale Blades, Receptacle
Current Rating - Appliance Inlet16 A
FeaturesShielded
Filter TypeFiltered (EMI, RFI) - Commercial, Medical
Ingress ProtectionIP40
Material Flammability RatingUL94 V-0
Mounting TypePanel Mount, Snap-In
Panel Cutout Dimensions [x]35 mm
Panel Cutout Dimensions [y]27 mm
Panel Thickness [Max]0.118 in
Panel Thickness [Max]3 mm
Panel Thickness [Min]0.79 mm
Panel Thickness [Min]0.031 "
Termination0.25 in
Termination6.3 mm
TerminationQuick Connect
Voltage Rating - Appliance Inlet250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 15.58
NewarkEach 1$ 27.09
10$ 25.00
25$ 23.03
50$ 18.06
TMEN/A 1$ 24.30
2$ 21.87
5$ 19.44
20$ 17.01

Description

General part information

5130 Series

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Snap-In
