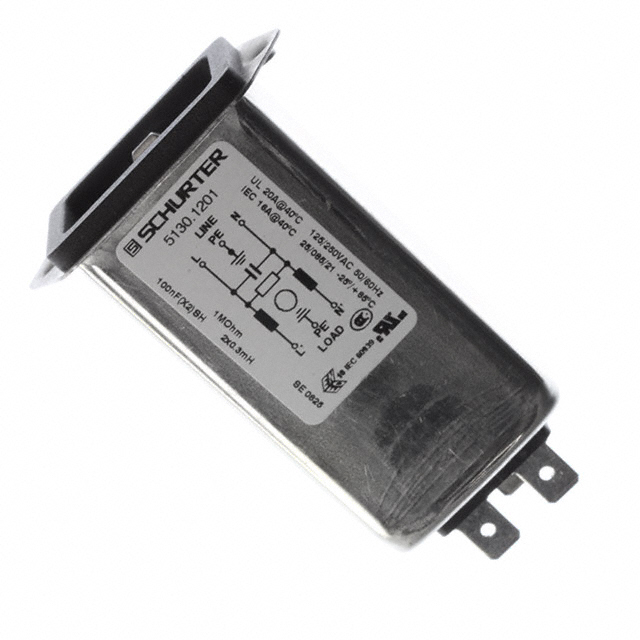

5130.1201

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 20A; 250VAC; C20 (I); 5130

Search across all available documentation for this part.

Active

SCHURTER Inc.

CONNECTOR: AC SUPPLY; SOCKET; MALE; 20A; 250VAC; C20 (I); 5130

Technical Specifications

Parameters and characteristics for this part

Specification	5130.1201

Accomodates a Fuse	False
Approval Agency	ENEC, cULus
Connector Style	IEC 320-C20
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	16 A
Features	Shielded
Filter Type	Filtered (EMI, RFI) - Commercial, Medical
Ingress Protection	IP40
Material Flammability Rating	UL94 V-0
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	36.5 mm
Panel Cutout Dimensions [y]	28.5 mm
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet	250 VAC

Part	Features	Termination	Termination	Termination	Material Flammability Rating	Voltage Rating - Appliance Inlet	Approval Agency	Mounting Type	Connector Style	Panel Cutout Dimensions [y]	Panel Cutout Dimensions [x]	Current Rating - Appliance Inlet	Connector Type	Filter Type	Accomodates a Fuse	Ingress Protection	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]
SCHURTER Inc. 5130.2201	Shielded	0.25 in	6.3 mm	Quick Connect	UL94 V-0	250 VAC	cULus ENEC	Panel Mount Snap-In	IEC 320-C20	27 mm	35 mm	16 A	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical		IP40	0.79 mm	0.118 in	3 mm	0.031 "
SCHURTER Inc. 5130.1201	Shielded	0.25 in	6.3 mm	Quick Connect	UL94 V-0	250 VAC	cULus ENEC	Flange Panel Mount	IEC 320-C20	28.5 mm	36.5 mm	16 A	Male Blades Receptacle	Filtered (EMI RFI) - Commercial Medical		IP40

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades IEC 320-C20 Panel Mount, Flange
