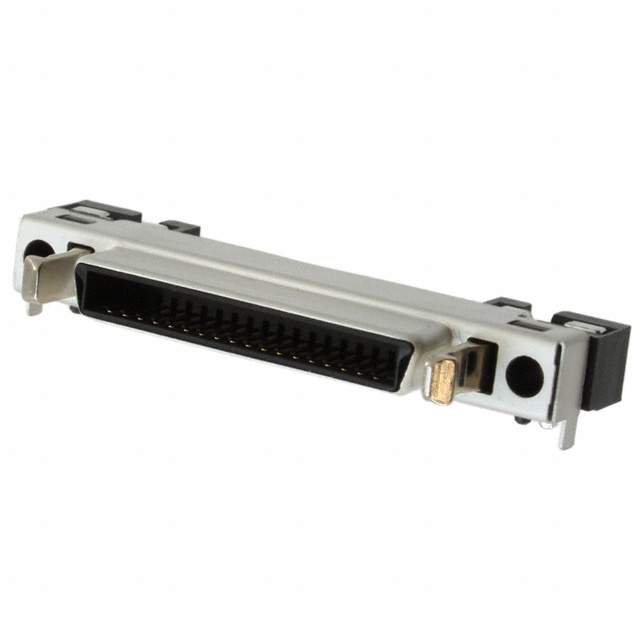

DH60A-37P

Active

Hirose Electric USA, Inc.

HIGH SPEED TRANSMISSION, 1.0MM PITCH SMALL INTERFACE CONNECTORS

Search across all available documentation for this part.

Active

Hirose Electric USA, Inc.

HIGH SPEED TRANSMISSION, 1.0MM PITCH SMALL INTERFACE CONNECTORS

Technical Specifications

Parameters and characteristics for this part

Part	For Use With/Related Products	Thread Size	Accessory Type	Length - Below Head [x]	Length - Below Head [x]	Mounting Type	Number of Rows	Contact Finish	Connector Type	Features	Flange Feature	Flange Feature	Termination	Connector Style	Type	Number of Positions
Hirose Electric USA, Inc. DH60A-SCREW	D-Sub Connectors PCB Mounted	M2	Board Lock Screw (Slotted)	10 mm	0.394 in
Hirose Electric USA, Inc. DH60-17P						Surface Mount Right Angle	2	Gold	Receptacle	Board Guide Shielded	Housing/Shell	2.6 M	Solder	Outer Shroud Contacts	SCSI
Hirose Electric USA, Inc. DH60A-17P						Surface Mount Right Angle	2	Gold	Receptacle	Board Guide Shielded	Housing/Shell	2.6 M	Solder	Outer Shroud Contacts	SCSI
Hirose Electric USA, Inc. DH60A-37P						Surface Mount Right Angle	2	Gold	Receptacle	Board Guide Shielded	Housing/Shell	2.6 M	Solder	Outer Shroud Contacts	SCSI	37
Hirose Electric USA, Inc. DH60A-37P-L						Surface Mount Right Angle	2	Gold	Plug	Board Guide Shielded	Insert Threaded (M2) Latchblocks		Solder	Center Strip Contacts	SCSI	37

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

37 Position Receptacle Connector SCSI Surface Mount, Right Angle Solder
