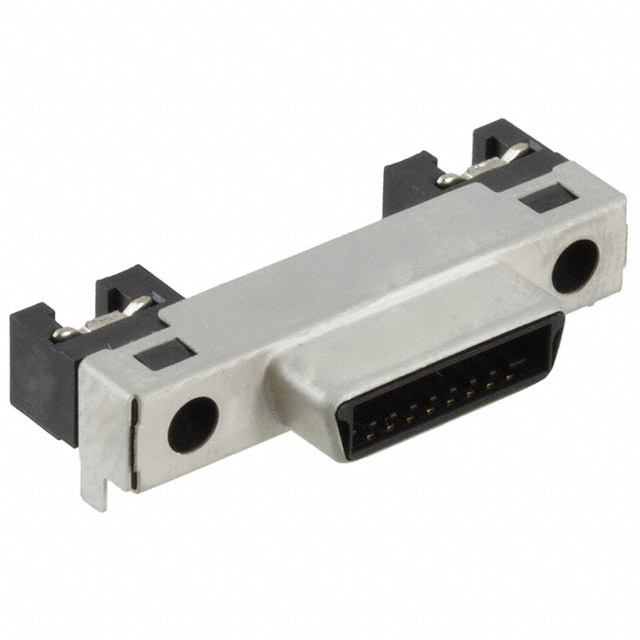

DH60-17P
ActiveHirose Electric USA, Inc.
TELECOM AND DATACOM CONNECTOR, 17 CONTACT(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL, LOCKING, RECEPTACLE
Deep-Dive with AI
Search across all available documentation for this part.
DH60-17P
ActiveHirose Electric USA, Inc.
TELECOM AND DATACOM CONNECTOR, 17 CONTACT(S), MALE, RIGHT ANGLE, SURFACE MOUNT TERMINAL, LOCKING, RECEPTACLE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DH60-17P |
|---|---|
| Connector Style | Outer Shroud Contacts |
| Connector Type | Receptacle |
| Contact Finish | Gold |
| Features | Shielded, Board Guide |
| Flange Feature | Housing/Shell |
| Flange Feature | 2.6 M |
| Mounting Type | Surface Mount, Right Angle |
| Number of Rows | 2 |
| Termination | Solder |
| Type | SCSI |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 4.98 | |
| 10 | $ 4.24 | |||
| 25 | $ 3.97 | |||
| 40 | $ 3.60 | |||
| 80 | $ 3.66 | |||
| 160 | $ 3.48 | |||
| 230 | $ 2.99 | |||
| 320 | $ 3.32 | |||
| 440 | $ 2.80 | |||
| 560 | $ 3.19 | |||
| 945 | $ 2.74 | |||
| 1040 | $ 3.05 | |||
| 2560 | $ 2.86 | |||
Description
General part information
DH60 Series
17 Position Receptacle Connector SCSI Surface Mount, Right Angle Solder
