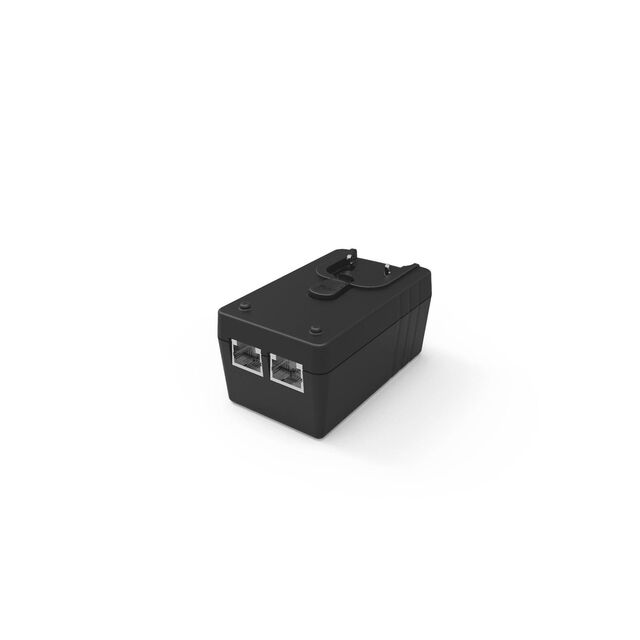

POE16R-1AFG6-2-R

Active

Phihong USA

POE INJECTOR 15.4W 56V WALL

Search across all available documentation for this part.

Active

Phihong USA

POE INJECTOR 15.4W 56V WALL

Technical Specifications

Parameters and characteristics for this part

Specification	POE16R-1AFG6-2-R

Approval Agency	CE, UL, cUL, cULus
Compliance	IEEE802.3af
Current - Output	275 mA
Data Rate	2.5 Gbps
Efficiency	Level VI
Features	SCP, OCP, OVP
Input Connector	RJ45 (Data), International AC Clips (Power)
Mounting Type	Wall Mount
Number of Ports	1
Operating Temperature [Max]	45 °C
Operating Temperature [Min]	-20 C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	15.4 W
Size / Dimension [x]	86 mm, 3.39 in
Size / Dimension [y]	50.2 mm, 1.98 in
Size / Dimension [z]	1.31 ", 33.2 mm
Type	Midspan Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V

Part	Compliance	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Features	Data Rate	Power (Watts) - Per Port	Approval Agency	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Type	Mounting Type	Input Connector	Number of Ports	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Note	Data Rate [Min]	Data Rate [Max]
Phihong USA POE16R-1AFG6-2-R	IEEE802.3af	56 V	45 °C	-20 C	275 mA	OCP OVP SCP	2.5 Gbps	15.4 W	CE cUL cULus UL	Level VI	90 VAC	264 VAC	RJ45 (Data Power)	Midspan Injector	Wall Mount	International AC Clips (Power) RJ45 (Data)	1	1.31 " 33.2 mm	3.39 in 86 mm	1.98 in 50.2 mm
Phihong USA POE16R-560L6	IEEE802.3af	56 V	40 °C	0 °C	286 mA	OCP OVP SCP		16 W	C-Tick CE cULus SAA	Level VI	90 VAC	264 VAC	RJ45 (Data Power)	Passive Injector	Wall Mount	RJ45 (Data)	1	1.31 " 33.2 mm	3.39 in 86 mm	1.98 in 50.2 mm	AC Power Clips Sold Separately	10 Mbps	100 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56V Power Over Ethernet (POE) 1 Port Midspan Injector 2.5 Gbps Data Rate
