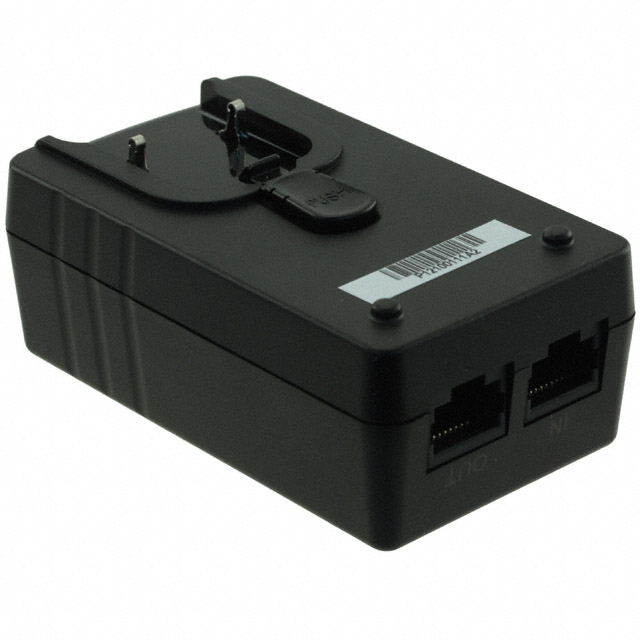

POE16R-560L6

Active

Phihong USA

POE INJECTOR WALL MOUNT 56V

Search across all available documentation for this part.

Active

Phihong USA

POE INJECTOR WALL MOUNT 56V

Technical Specifications

Parameters and characteristics for this part

Specification	POE16R-560L6

Approval Agency	CE, cULus, C-Tick, SAA
Compliance	IEEE802.3af
Current - Output	286 mA
Data Rate [Max]	100 Mbps
Data Rate [Min]	10 Mbps
Efficiency	Level VI
Features	SCP, OCP, OVP
Input Connector	RJ45 (Data)
Mounting Type	Wall Mount
Note	AC Power Clips Sold Separately
Number of Ports	1
Operating Temperature [Max]	40 °C
Operating Temperature [Min]	0 °C
Output Connector	RJ45 (Data, Power)
Power (Watts) - Per Port	16 W
Size / Dimension [x]	86 mm, 3.39 in
Size / Dimension [y]	50.2 mm, 1.98 in
Size / Dimension [z]	1.31 ", 33.2 mm
Type	Passive Injector
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Output	56 V

Part	Compliance	Voltage - Output	Operating Temperature [Max]	Operating Temperature [Min]	Current - Output	Features	Data Rate	Power (Watts) - Per Port	Approval Agency	Efficiency	Voltage - Input [Min]	Voltage - Input [Max]	Output Connector	Type	Mounting Type	Input Connector	Number of Ports	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Note	Data Rate [Min]	Data Rate [Max]
Phihong USA POE16R-1AFG6-2-R	IEEE802.3af	56 V	45 °C	-20 C	275 mA	OCP OVP SCP	2.5 Gbps	15.4 W	CE cUL cULus UL	Level VI	90 VAC	264 VAC	RJ45 (Data Power)	Midspan Injector	Wall Mount	International AC Clips (Power) RJ45 (Data)	1	1.31 " 33.2 mm	3.39 in 86 mm	1.98 in 50.2 mm
Phihong USA POE16R-560L6	IEEE802.3af	56 V	40 °C	0 °C	286 mA	OCP OVP SCP		16 W	C-Tick CE cULus SAA	Level VI	90 VAC	264 VAC	RJ45 (Data Power)	Passive Injector	Wall Mount	RJ45 (Data)	1	1.31 " 33.2 mm	3.39 in 86 mm	1.98 in 50.2 mm	AC Power Clips Sold Separately	10 Mbps	100 Mbps

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

56V Power Over Ethernet (POE) 1 Port Passive Injector 10/100 Mbps Data Rate
