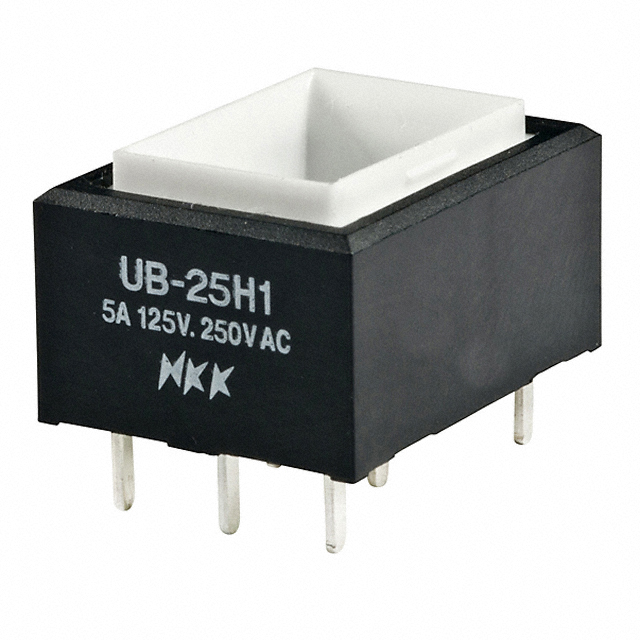

UB25RKW035C

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	UB25RKW035C

Actuator Marking	No Marking
Actuator Type	Plunger for Cap
Circuit	DPDT
Current Rating (Amps)	5 A
Electrical Life	10000 Cycles
Features	Spot LED
Illumination Type, Color	Red, LED
Illumination Voltage (Nominal)	1.85 VDC
Mechanical Life	1000000 Cycles
Mounting Type	Through Hole
Operating Temperature [Max]	50 °C
Operating Temperature [Min]	-25 °C
Switch Function	On-Mom
Termination Style	PC Pin
Type	Illuminated, Standard
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Circuit	Features	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Type	Voltage Rating - DC	Termination Style	Mechanical Life	Mounting Type	Electrical Life	Actuator Type	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches UB25RKW03N-C	-20 C	70 °C	5 A	On-Mom	DPDT	Spot LED	No Marking	125 V	Red	Standard	30 V	PC Pin	1000000 Cycles	Through Hole	10000 Cycles	Rectangular Button
NKK Switches UB25RKW035C	-25 °C	50 °C	5 A	On-Mom	DPDT	Spot LED	No Marking	125 V		Illuminated Standard	30 V	PC Pin	1000000 Cycles	Through Hole	10000 Cycles	Plunger for Cap	LED Red	1.85 VDC
NKK Switches UB25RKW03N	-20 C	70 °C	5 A	On-Mom	DPDT	Spot LED	No Marking	125 V		Standard	30 V	PC Pin	1000000 Cycles	Through Hole	10000 Cycles	Plunger for Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard, Illuminated Through Hole
