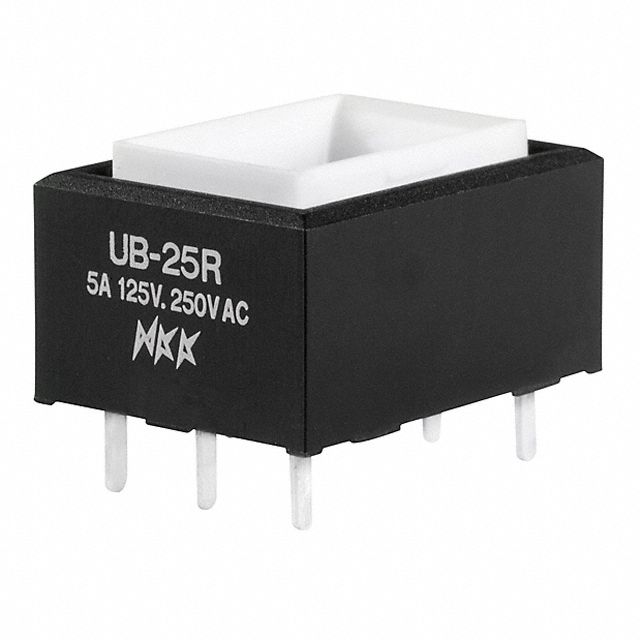

UB25RKW03N

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Search across all available documentation for this part.

Active

NKK Switches

SWITCH PUSHBUTTON DPDT 5A 125V

Technical Specifications

Parameters and characteristics for this part

Part	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Switch Function	Circuit	Features	Actuator Marking	Voltage Rating - AC	Color - Actuator/Cap	Type	Voltage Rating - DC	Termination Style	Mechanical Life	Mounting Type	Electrical Life	Actuator Type	Illumination Type, Color	Illumination Voltage (Nominal)
NKK Switches UB25RKW03N-C	-20 C	70 °C	5 A	On-Mom	DPDT	Spot LED	No Marking	125 V	Red	Standard	30 V	PC Pin	1000000 Cycles	Through Hole	10000 Cycles	Rectangular Button
NKK Switches UB25RKW035C	-25 °C	50 °C	5 A	On-Mom	DPDT	Spot LED	No Marking	125 V		Illuminated Standard	30 V	PC Pin	1000000 Cycles	Through Hole	10000 Cycles	Plunger for Cap	LED Red	1.85 VDC
NKK Switches UB25RKW03N	-20 C	70 °C	5 A	On-Mom	DPDT	Spot LED	No Marking	125 V		Standard	30 V	PC Pin	1000000 Cycles	Through Hole	10000 Cycles	Plunger for Cap

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Pushbutton Switch DPDT Standard Through Hole
