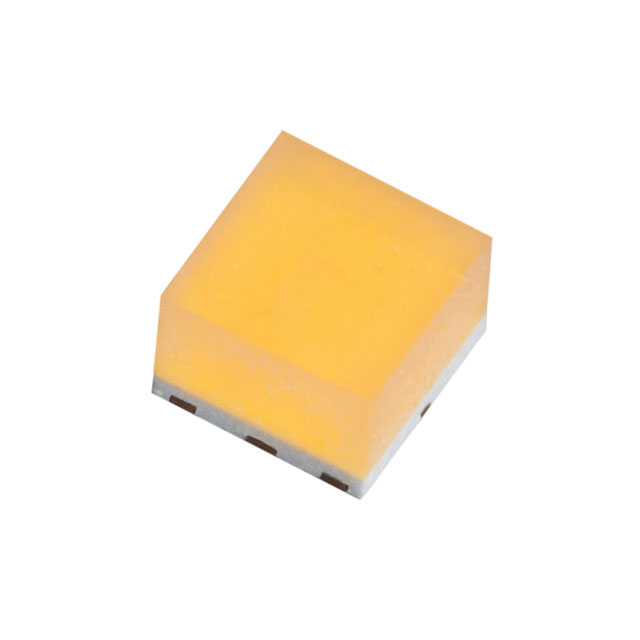

MP-1616-2100-30-90

NRND

Luminus Devices Inc.

MID-POWER LEDS - WHITE WHITE 3000 K 90-CRI, MP-1616 SERIES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

MP-1616-2100-30-90

NRND

Luminus Devices Inc.

MID-POWER LEDS - WHITE WHITE 3000 K 90-CRI, MP-1616 SERIES

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MP-1616-2100-30-90

Color	White, Warm
CRI (Color Rendering Index)	90
Current - Max [Max]	200 mA
Current - Test	150 mA
Flux @ 25°C, Current - Test	100 lm
Height - Seated (Max) [Max]	0.039 "
Height - Seated (Max) [Max]	1 mm
Lumens/Watt @ Current - Test	108 lm/W
Mounting Type	Surface Mount
Package / Case	0606, 1616 Metric
Size / Dimension [x]	1.6 mm
Size / Dimension [x]	0.063 in
Size / Dimension [y]	0.063 in
Size / Dimension [y]	1.6 mm
Supplier Device Package	1616
Thermal Resistance of Package [custom]	8 °C/W
Viewing Angle	170 °
Voltage - Forward (Vf) (Typ)	6.2 V

MP-1616 Series

Part	Current - Max [Max]	Voltage - Forward (Vf) (Typ)	Lumens/Watt @ Current - Test	Mounting Type	Current - Test	Flux @ 25°C, Current - Test	Viewing Angle	Supplier Device Package	CCT (K)	Thermal Resistance of Package [diameter]	Color	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]	CRI (Color Rendering Index)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Thermal Resistance of Package [custom]
Luminus Devices Inc. MP-1616-1100-40-95	200 mA	3.5 V	101 lm/W	Surface Mount	150 mA	53 lm	170 °	1616	4000 K	22 °C/W	Neutral White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric	0.039 "	1 mm	95
Luminus Devices Inc. MP-1616-1103-50-90	200 mA	3.3 V	117 lm/W	Surface Mount	150 mA	58 lm	135 °	1616	5000 K	22 °C/W	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric			90	0.73 mm	0.029 in
Luminus Devices Inc. MP-1616-2100-30-80	200 mA	6.2 V	127 lm/W	Surface Mount	150 mA	118 lm	170 °	1616			Warm White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric	0.039 "	1 mm	80			8 °C/W
Luminus Devices Inc. MP-1616-1100-57-95	200 mA	3.5 V	101 lm/W	Surface Mount	150 mA	53 lm	170 °	1616	5700 K	22 °C/W	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric	0.039 "	1 mm	95
Luminus Devices Inc. MP-1616-1100-27-90	200 mA	3.3 V	107 lm/W	Surface Mount	150 mA	53 lm	170 °	1616	2700 K	22 °C/W	Warm White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric	0.039 "	1 mm	90
Luminus Devices Inc. MP-1616-2103-40-90	240 mA	6.2 V	118 lm/W	Surface Mount	150 mA	110 lm	135 °	1616	4000 K		Neutral White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric			90	0.73 mm	0.029 in	8 °C/W
Luminus Devices Inc. MP-1616-1100-57-70
Luminus Devices Inc. MP-1616-2103-35-90	240 mA	6.2 V	117 lm/W	Surface Mount	150 mA	109 lm	135 °	1616	3500 K		Warm White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric			90	0.73 mm	0.029 in	8 °C/W
Luminus Devices Inc. MP-1616-2100-30-90	200 mA	6.2 V	108 lm/W	Surface Mount	150 mA	100 lm	170 °	1616			Warm White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric	0.039 "	1 mm	90			8 °C/W
Luminus Devices Inc. MP-1616-1103-65-80	200 mA	3.3 V	131 lm/W	Surface Mount	150 mA	65 lm	135 °	1616	6500 K	22 °C/W	Cool White	0.063 in	1.6 mm	0.063 in	1.6 mm	0606 1616 Metric			80	0.73 mm	0.029 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.54
		10	$ 0.36
		100	$ 0.24
		500	$ 0.16
		1000	$ 0.14
	Digi-Reel®	1	$ 0.54
		10	$ 0.36
		100	$ 0.24
		500	$ 0.16
		1000	$ 0.14
	Tape & Reel (TR)	3000	$ 0.08
		6000	$ 0.07

Description

General part information

MP-1616 Series

LED Lighting MP-1616-2100 White, Warm 3000K 6.2V 150mA 170° 0606 (1616 Metric)
