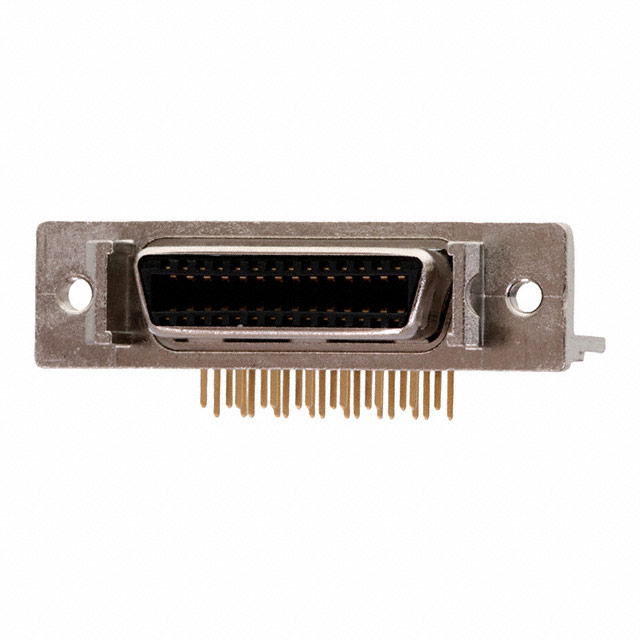

DX10-28S(50)

Active

Hirose Electric USA, Inc.

CONN 1.27MM PITCH HIDENSITY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DX10-28S(50)

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Contact Finish Thickness	7.87 µin
Contact Finish Thickness	0.2 µm
Flange Feature	Latchblocks, Housing/Shell
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	28
Number of Rows	2
Termination	Solder
Type	Miniature High Density (HD)

DX10 Series

Part	Termination	Contact Finish	Type	Number of Positions	Mounting Type	Connector Type	Number of Rows	Flange Feature	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature
Hirose Electric USA, Inc. DX10-28S(50)	Solder	Gold	Miniature High Density (HD)	28	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell Latchblocks	Outer Shroud Contacts	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX10AM-110SE2(50)	Solder	Gold	Miniature High Density (HD)	110 positions	Panel Mount Right Angle Through Hole	Receptacle	2		Outer Shroud Contacts	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX10BM-68S(50)	Solder	Gold	Miniature High Density (HD)	68	Panel Mount Right Angle Through Hole	Receptacle	2		Outer Shroud Contacts
Hirose Electric USA, Inc. DX10M-14S(50)	Solder	Gold	Miniature High Density (HD)	14	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell Latchblocks	Outer Shroud Contacts	11.8 Áin	0.3 Ám
Hirose Electric USA, Inc. DX10G1M-50S(50)	Solder	Gold	Miniature High Density (HD)	50	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell	Outer Shroud Contacts			2.6 M
Hirose Electric USA, Inc. DX10-80S(50)	Solder	Gold	Miniature High Density (HD)	80	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell Latchblocks	Outer Shroud Contacts	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX10M-20SE(50)	Solder	Gold	Miniature High Density (HD)	20	Panel Mount Right Angle Through Hole	Receptacle	2	Latchblocks Mating Side (M2.6)	Outer Shroud Contacts	11.8 Áin	0.3 Ám
Hirose Electric USA, Inc. DX10GM-68SE(50)	Solder	Gold	Miniature High Density (HD)	68	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell	Outer Shroud Contacts			2.6 M
Hirose Electric USA, Inc. DX10G1M-36SE(50)	Solder	Gold	Miniature High Density (HD)	36	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell	Outer Shroud Contacts			2.6 M
Hirose Electric USA, Inc. DX10AM-110SE1(50)	Solder	Gold	Miniature High Density (HD)	110 positions	Panel Mount Right Angle Through Hole	Receptacle	2	Mating Side (M2.6)	Outer Shroud Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 9.48
		10	$ 8.53
		25	$ 8.04
		60	$ 7.83
		120	$ 7.62
		240	$ 6.80
		480	$ 6.39
		960	$ 5.65

Description

General part information

DX10 Series

28 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder

Documents

Technical documentation and resources

No documents available
