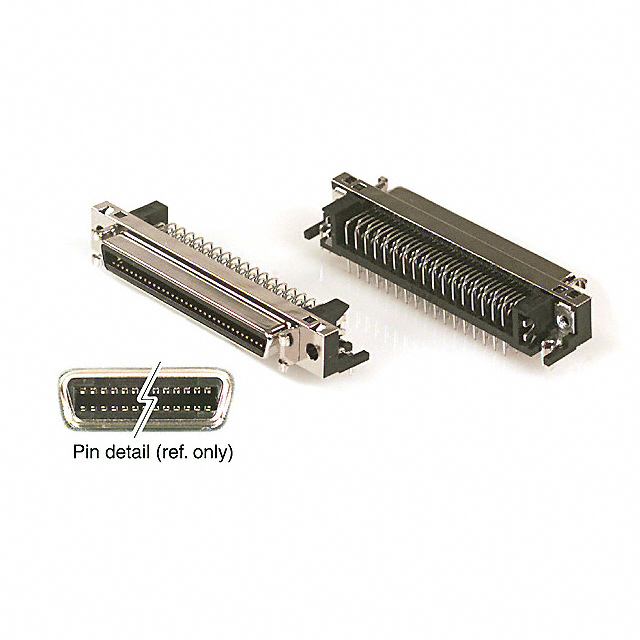

DX10GM-68SE(50)

Obsolete

Hirose Electric USA, Inc.

CONN MINI HD RCPT 68P R/A SOLDER

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

DX10GM-68SE(50)

Obsolete

Hirose Electric USA, Inc.

CONN MINI HD RCPT 68P R/A SOLDER

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	DX10GM-68SE(50)

Connector Style	Outer Shroud Contacts
Connector Type	Receptacle
Contact Finish	Gold
Flange Feature	Housing/Shell
Flange Feature	2.6 M
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	68
Number of Rows	2
Termination	Solder
Type	Miniature High Density (HD)

DX10 Series

Part	Termination	Contact Finish	Type	Number of Positions	Mounting Type	Connector Type	Number of Rows	Flange Feature	Connector Style	Contact Finish Thickness	Contact Finish Thickness	Flange Feature
Hirose Electric USA, Inc. DX10-28S(50)	Solder	Gold	Miniature High Density (HD)	28	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell Latchblocks	Outer Shroud Contacts	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX10AM-110SE2(50)	Solder	Gold	Miniature High Density (HD)	110 positions	Panel Mount Right Angle Through Hole	Receptacle	2		Outer Shroud Contacts	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX10BM-68S(50)	Solder	Gold	Miniature High Density (HD)	68	Panel Mount Right Angle Through Hole	Receptacle	2		Outer Shroud Contacts
Hirose Electric USA, Inc. DX10M-14S(50)	Solder	Gold	Miniature High Density (HD)	14	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell Latchblocks	Outer Shroud Contacts	11.8 Áin	0.3 Ám
Hirose Electric USA, Inc. DX10G1M-50S(50)	Solder	Gold	Miniature High Density (HD)	50	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell	Outer Shroud Contacts			2.6 M
Hirose Electric USA, Inc. DX10-80S(50)	Solder	Gold	Miniature High Density (HD)	80	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell Latchblocks	Outer Shroud Contacts	7.87 µin	0.2 µm
Hirose Electric USA, Inc. DX10M-20SE(50)	Solder	Gold	Miniature High Density (HD)	20	Panel Mount Right Angle Through Hole	Receptacle	2	Latchblocks Mating Side (M2.6)	Outer Shroud Contacts	11.8 Áin	0.3 Ám
Hirose Electric USA, Inc. DX10GM-68SE(50)	Solder	Gold	Miniature High Density (HD)	68	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell	Outer Shroud Contacts			2.6 M
Hirose Electric USA, Inc. DX10G1M-36SE(50)	Solder	Gold	Miniature High Density (HD)	36	Panel Mount Right Angle Through Hole	Receptacle	2	Housing/Shell	Outer Shroud Contacts			2.6 M
Hirose Electric USA, Inc. DX10AM-110SE1(50)	Solder	Gold	Miniature High Density (HD)	110 positions	Panel Mount Right Angle Through Hole	Receptacle	2	Mating Side (M2.6)	Outer Shroud Contacts

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

DX10 Series

68 Position Receptacle Connector Miniature High Density (HD) Panel Mount, Through Hole, Right Angle Solder
