09140014711

Active

HARTING Technology Group

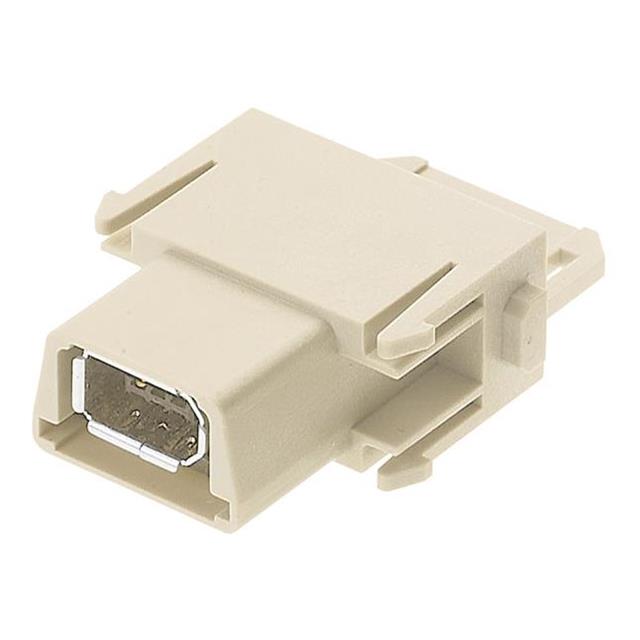

I/O CONNECTOR, 6 CONTACTS, RECEPTACLE, FIREWIRE IEEE-1394, HAN-MODULAR SERIES, CABLE MOUNT

Search across all available documentation for this part.

Active

HARTING Technology Group

I/O CONNECTOR, 6 CONTACTS, RECEPTACLE, FIREWIRE IEEE-1394, HAN-MODULAR SERIES, CABLE MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	09140014711

Accessory Type	Insert Receiving Frame
For Use With/Related Products	Han-Modular® Firewire Series
Specifications	Female

Part	Specifications	Accessory Type	For Use With/Related Products	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Housing Material	Connector Type	Color	Voltage Rating	Number of Positions	Termination Style
HARTING Technology Group 09140014611	Male	Insert Receiving Frame	Han-Modular® Firewire Series
HARTING Technology Group 09140014721				8p8c	UL94 V-0	-40 °C	70 °C	Female	Polycarbonate (PC)	Module RJ45	Gray	30 VDC
HARTING Technology Group 09140014601	Male	Insert Receiving Frame	Han-Modular® USB
HARTING Technology Group 09140014701					UL94 V-0	-40 °C	85 °C	Female	Polycarbonate (PC)	Module USB	Gray	30 VDC	4
HARTING Technology Group 09140014623	Male	Insert Receiving Frame	Han-Modular® RJ45 Series
HARTING Technology Group 09140014722	Female	Insert Receiving Frame	Han-Modular® RJ45 Series
HARTING Technology Group 09140014703					UL94 V-0	-40 °C	85 °C	Female	Polycarbonate (PC)	Module USB	Gray	50 V	8	IDC
HARTING Technology Group 09140014622	Male	Insert Receiving Frame	Han-Modular® RJ45 Series
HARTING Technology Group 09140014711	Female	Insert Receiving Frame	Han-Modular® Firewire Series
HARTING Technology Group 09140014651					UL94 V-0	-40 °C	85 °C	Male	Polycarbonate (PC)	Module USB	Gray	30 VDC	4	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Insert Receiving Frame

Technical documentation and resources

No documents available
