09140014703

Active

HARTING Technology Group

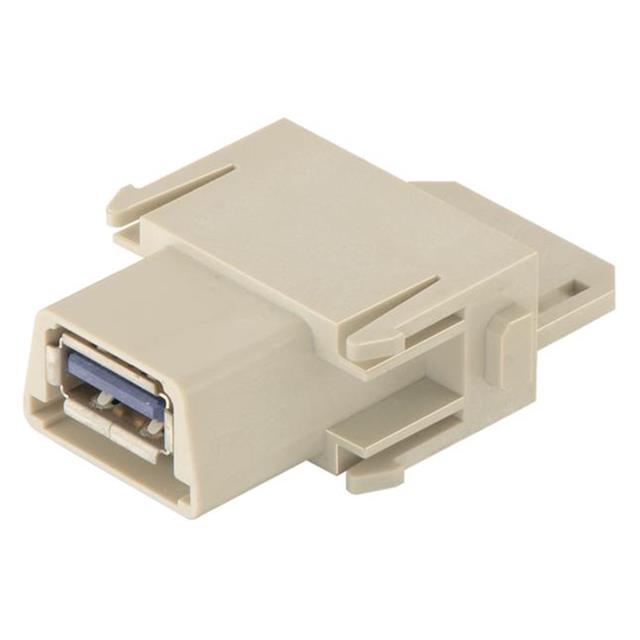

USB CONNECTOR, USB TYPE A, USB 3.0, RECEPTACLE, 8 POSITIONS, CABLE MOUNT, VERTICAL

Search across all available documentation for this part.

Active

HARTING Technology Group

USB CONNECTOR, USB TYPE A, USB 3.0, RECEPTACLE, 8 POSITIONS, CABLE MOUNT, VERTICAL

Technical Specifications

Parameters and characteristics for this part

Specification	09140014703

Color	Gray
Connector Type	USB, Module
Gender	Female
Housing Material	Polycarbonate (PC)
Material Flammability Rating	UL94 V-0
Number of Positions	8
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Termination Style	IDC
Voltage Rating	50 V

Part	Specifications	Accessory Type	For Use With/Related Products	Number of Positions	Material Flammability Rating	Operating Temperature [Min]	Operating Temperature [Max]	Gender	Housing Material	Connector Type	Color	Voltage Rating	Number of Positions	Termination Style
HARTING Technology Group 09140014611	Male	Insert Receiving Frame	Han-Modular® Firewire Series
HARTING Technology Group 09140014721				8p8c	UL94 V-0	-40 °C	70 °C	Female	Polycarbonate (PC)	Module RJ45	Gray	30 VDC
HARTING Technology Group 09140014601	Male	Insert Receiving Frame	Han-Modular® USB
HARTING Technology Group 09140014701					UL94 V-0	-40 °C	85 °C	Female	Polycarbonate (PC)	Module USB	Gray	30 VDC	4
HARTING Technology Group 09140014623	Male	Insert Receiving Frame	Han-Modular® RJ45 Series
HARTING Technology Group 09140014722	Female	Insert Receiving Frame	Han-Modular® RJ45 Series
HARTING Technology Group 09140014703					UL94 V-0	-40 °C	85 °C	Female	Polycarbonate (PC)	Module USB	Gray	50 V	8	IDC
HARTING Technology Group 09140014622	Male	Insert Receiving Frame	Han-Modular® RJ45 Series
HARTING Technology Group 09140014711	Female	Insert Receiving Frame	Han-Modular® Firewire Series
HARTING Technology Group 09140014651					UL94 V-0	-40 °C	85 °C	Male	Polycarbonate (PC)	Module USB	Gray	30 VDC	4	Screw

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Female Module, USB Gray 8 Position IDC
