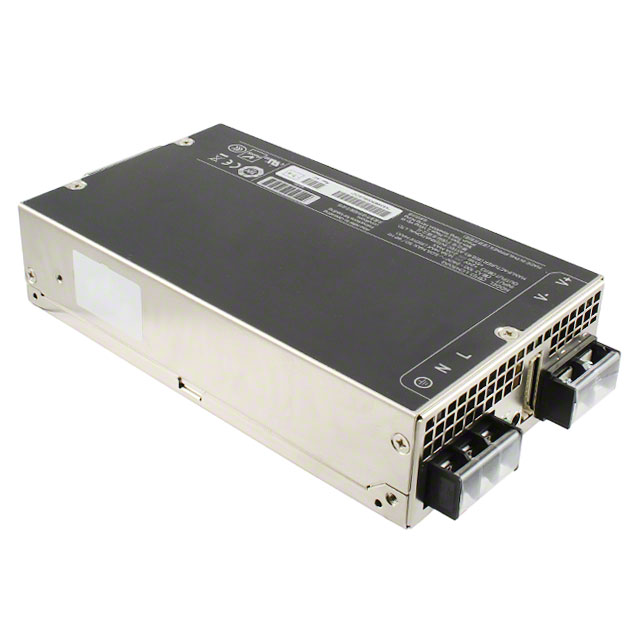

LCM300Q-T-1

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 24V 14.5A 360W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

LCM300Q-T-1

Active

ARTESYN / Advanced Energy

AC/DC POWER SUPPLY SINGLE-OUT 24V 14.5A 360W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCM300Q-T-1

Applications	ITE (Commercial), Medical
Approval Agency	CB
Current - Output 1	12.5 A
Efficiency	91 %
Features	Universal Input, Remote Sense, Remote On/Off, Adjustable Output, Load Sharing, PFC
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	310 W
Size / Dimension [x]	177.8 mm
Size / Dimension [x]	7 "
Size / Dimension [y]	4 "
Size / Dimension [y]	101.6 mm
Size / Dimension [z]	41 mm
Size / Dimension [z]	1.61 "
Type	Front End
Voltage - Input [Max]	264 VAC
Voltage - Input [Min]	90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	24 V

LCM3000 Series

Artesyn Embedded Technologies

Part	Voltage - Input [Min]	Voltage - Input [Max]	Type	Efficiency	Mounting Type	Current - Output 1	Voltage - Output 1	Features	Number of Outputs	Approval Agency	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Power (Watts)	Standard Number	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy LCM300N-T	90 VAC	264 VAC	Front End	91 %	Chassis Mount	20 A	12 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	CB	4000 V	177.8 mm	7 "	4 "	101.6 mm	41 mm	1.61 "	ITE (Commercial) Medical	310 W
ARTESYN / Advanced Energy LCM30008-T	90 VAC 128 VDC	264 VAC 370 VDC	Front End	90 %	Chassis Mount	166.7 A	18 V	Adjustable Output DC Input Capable PFC PMBus™ Remote Sense Universal Input	1	CB CE cUL TUV UL	4000 V	282.5 mm	11.12 in	4.64 "			2.5 in	ITE (Commercial) Medical	3000 W	60601-1 60950-1 62368-1	117.8 mm	63.5 mm
ARTESYN / Advanced Energy LCM300Q-T-1	90 VAC	264 VAC	Front End	91 %	Chassis Mount	12.5 A	24 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	CB	4000 V	177.8 mm	7 "	4 "	101.6 mm	41 mm	1.61 "	ITE (Commercial) Medical	310 W
ARTESYN / Advanced Energy LCM3000L-T	90 VAC	264 VAC	Front End	90 %	Rack Mount	250 A	12 V	Adjustable Output PFC PMBus™ Remote Sense Universal Input	1	CB CE TUV	3000 V	10.9 " 276.9 mm			7 " 177.8 mm	63.5 mm		ITE (Commercial) Medical	3000 W	60601-1 60950-1 62368-1
ARTESYN / Advanced Energy LCM3000Q-T	90 VAC	264 VAC	Front End	90 %	Rack Mount	125 A	24 V	Adjustable Output PFC PMBus™ Remote Sense Universal Input	1	CB CE TUV	3000 V	10.9 " 276.9 mm			7 " 177.8 mm	63.5 mm		ITE (Commercial) Medical	3000 W	60601-1 60950-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 144.45

Description

General part information

LCM3000 Series

Artesyn Embedded Technologies

Documents

Technical documentation and resources
