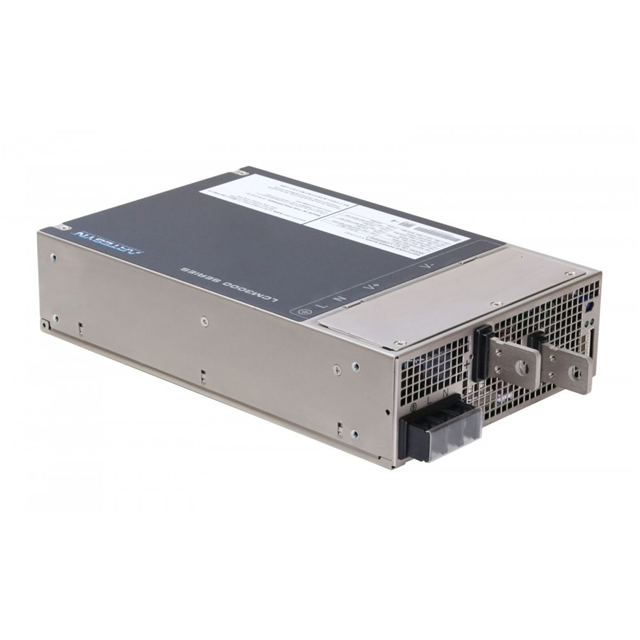

LCM30008-T

Active

ARTESYN / Advanced Energy

RACK MOUNT POWER SUPPLIES 18V A. 3KW BULK FRONT END 2.5" X 7.0" X 10.9\/

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Datasheet

LCM30008-T

Active

ARTESYN / Advanced Energy

RACK MOUNT POWER SUPPLIES 18V A. 3KW BULK FRONT END 2.5" X 7.0" X 10.9\/

Deep-Dive with AI

DocumentsDatasheet Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	LCM30008-T

Applications	ITE (Commercial), Medical
Approval Agency	CB, CE, cUL, UL, TUV
Current - Output 1	166.7 A
Efficiency	90 %
Features	PMBus™, Universal Input, Remote Sense, Adjustable Output, PFC, DC Input Capable
Minimum Load Required	False
Mounting Type	Chassis Mount
Number of Outputs	1
Power (Watts)	3000 W
Size / Dimension [x]	282.5 mm
Size / Dimension [x]	11.12 in
Size / Dimension [y]	4.64 "
Size / Dimension [y]	117.8 mm
Size / Dimension [z]	63.5 mm
Size / Dimension [z]	2.5 in
Standard Number	60950-1, 60601-1, 62368-1
Type	Front End
Voltage - Input [Max]	370 VDC, 264 VAC
Voltage - Input [Min]	128 VDC, 90 VAC
Voltage - Isolation	4000 V
Voltage - Output 1	18 V

LCM3000 Series

Artesyn Embedded Technologies

Part	Voltage - Input [Min]	Voltage - Input [Max]	Type	Efficiency	Mounting Type	Current - Output 1	Voltage - Output 1	Features	Number of Outputs	Approval Agency	Voltage - Isolation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Applications	Power (Watts)	Standard Number	Size / Dimension [y]	Size / Dimension [z]
ARTESYN / Advanced Energy LCM300N-T	90 VAC	264 VAC	Front End	91 %	Chassis Mount	20 A	12 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	CB	4000 V	177.8 mm	7 "	4 "	101.6 mm	41 mm	1.61 "	ITE (Commercial) Medical	310 W
ARTESYN / Advanced Energy LCM30008-T	90 VAC 128 VDC	264 VAC 370 VDC	Front End	90 %	Chassis Mount	166.7 A	18 V	Adjustable Output DC Input Capable PFC PMBus™ Remote Sense Universal Input	1	CB CE cUL TUV UL	4000 V	282.5 mm	11.12 in	4.64 "			2.5 in	ITE (Commercial) Medical	3000 W	60601-1 60950-1 62368-1	117.8 mm	63.5 mm
ARTESYN / Advanced Energy LCM300Q-T-1	90 VAC	264 VAC	Front End	91 %	Chassis Mount	12.5 A	24 V	Adjustable Output Load Sharing PFC Remote On/Off Remote Sense Universal Input	1	CB	4000 V	177.8 mm	7 "	4 "	101.6 mm	41 mm	1.61 "	ITE (Commercial) Medical	310 W
ARTESYN / Advanced Energy LCM3000L-T	90 VAC	264 VAC	Front End	90 %	Rack Mount	250 A	12 V	Adjustable Output PFC PMBus™ Remote Sense Universal Input	1	CB CE TUV	3000 V	10.9 " 276.9 mm			7 " 177.8 mm	63.5 mm		ITE (Commercial) Medical	3000 W	60601-1 60950-1 62368-1
ARTESYN / Advanced Energy LCM3000Q-T	90 VAC	264 VAC	Front End	90 %	Rack Mount	125 A	24 V	Adjustable Output PFC PMBus™ Remote Sense Universal Input	1	CB CE TUV	3000 V	10.9 " 276.9 mm			7 " 177.8 mm	63.5 mm		ITE (Commercial) Medical	3000 W	60601-1 60950-1 62368-1

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 759.23
		5	$ 733.92
		10	$ 708.61
Sager	N/A	1	$ 715.91
		2	$ 703.85
		5	$ 687.43
		10	$ 671.77
		20	$ 664.64
		50	$ 660.26

Description

General part information

LCM3000 Series

Artesyn Embedded Technologies

Documents

Technical documentation and resources

Datasheet

Document
