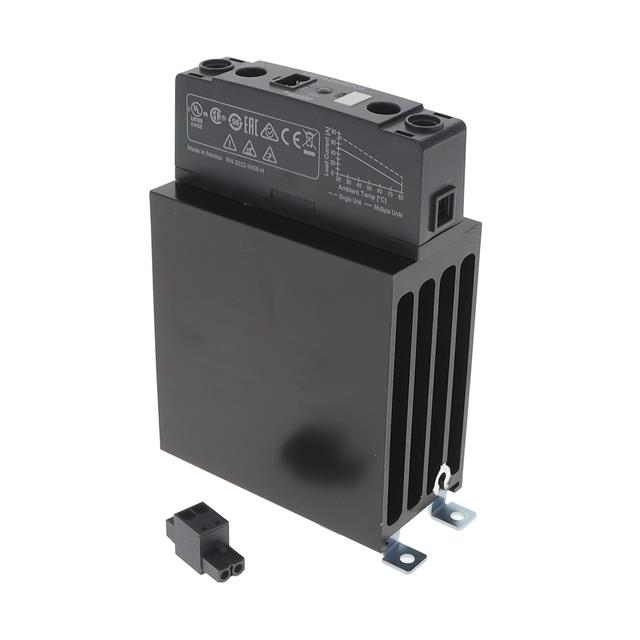

SSD1A360BDC3

Active

SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE CONTACTOR, 60 A, 600 VAC, 32 VDC, ZERO VOLTAGE TURN ON, DIN RAIL, SPRING

Deep-Dive with AI

DocumentsDatasheet Safety Data Sheet B EN +3

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSD1A360BDC3

Approval Agency	UL, CSA, IEC
Load Current	60 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC, Zero Cross
Package / Case	SSR with Integrated Heat Sink
Termination Style	Screw Terminal
Voltage - Input [Max]	32 V
Voltage - Input [Min]	4 V
Voltage - Load [Max]	600 V
Voltage - Load [Min]	48 V

SSD1A Series

Part	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Package / Case	Load Current	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
SQUARE D BY SCHNEIDER ELECTRIC SSD1A320M7C3	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC Zero Cross	Module	20 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A320BDRC3	48 V	600 V	CSA IEC UL	32 V	4 V	AC	Module	20 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360BDC2	48 V	600 V	CSA IEC UL	32 V	4 V	AC Zero Cross	Module	60 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360M7RC3	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	SSR with Integrated Heat Sink	60 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A320M7RC3	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	Module	20 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A335BDRC1	48 V	600 V	CSA IEC UL	32 V	4 V	AC	Module	35 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A335M7C1	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC Zero Cross	Module	35 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360M7RC2	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	SSR with Integrated Heat Sink	60 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A335M7RC2	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	Module	35 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360BDC3	48 V	600 V	CSA IEC UL	32 V	4 V	AC Zero Cross	SSR with Integrated Heat Sink	60 A	Screw Terminal	DIN Rail	-40 °C	80 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 129.24
		10	$ 121.64
		25	$ 114.03
		50	$ 107.60
Newark	Each	1	$ 141.78

Description

General part information

SSD1A Series

Solid State SPST-NO (1 Form A) SSR with Integrated Heat Sink
