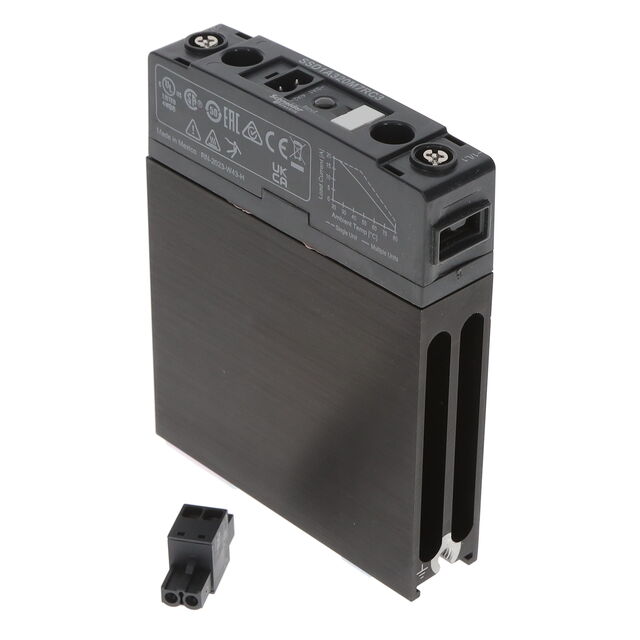

SSD1A320M7RC3

Active

SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE CONTACTOR, 20A, 48-600VAC ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

SSD1A320M7RC3

Active

SQUARE D BY SCHNEIDER ELECTRIC

SOLID STATE CONTACTOR, 20A, 48-600VAC ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	SSD1A320M7RC3

Approval Agency	UL, CSA, IEC
Load Current	20 A
Mounting Type	DIN Rail
Operating Temperature [Max]	80 C
Operating Temperature [Min]	-40 °C
Output Type	AC
Package / Case	Module
Termination Style	Screw Terminal
Voltage - Input [Max]	280 VAC/DC
Voltage - Input [Min]	90 VAC
Voltage - Load [Max]	600 V
Voltage - Load [Min]	48 V

SSD1A Series

Part	Voltage - Load [Min]	Voltage - Load [Max]	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Output Type	Package / Case	Load Current	Termination Style	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]
SQUARE D BY SCHNEIDER ELECTRIC SSD1A320M7C3	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC Zero Cross	Module	20 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A320BDRC3	48 V	600 V	CSA IEC UL	32 V	4 V	AC	Module	20 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360BDC2	48 V	600 V	CSA IEC UL	32 V	4 V	AC Zero Cross	Module	60 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360M7RC3	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	SSR with Integrated Heat Sink	60 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A320M7RC3	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	Module	20 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A335BDRC1	48 V	600 V	CSA IEC UL	32 V	4 V	AC	Module	35 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A335M7C1	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC Zero Cross	Module	35 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360M7RC2	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	SSR with Integrated Heat Sink	60 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A335M7RC2	48 V	600 V	CSA IEC UL	280 VAC/DC	90 VAC	AC	Module	35 A	Screw Terminal	DIN Rail	-40 °C	80 C
SQUARE D BY SCHNEIDER ELECTRIC SSD1A360BDC3	48 V	600 V	CSA IEC UL	32 V	4 V	AC Zero Cross	SSR with Integrated Heat Sink	60 A	Screw Terminal	DIN Rail	-40 °C	80 C

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 95.06
		10	$ 89.78
		25	$ 84.50
		50	$ 79.21
		100	$ 74.74
Newark	Each	1	$ 109.30

Description

General part information

SSD1A Series

Solid State SPST-NO (1 Form A) Module

Documents

Technical documentation and resources

Datasheet

Technical Data Sheet EN

Datasheet
