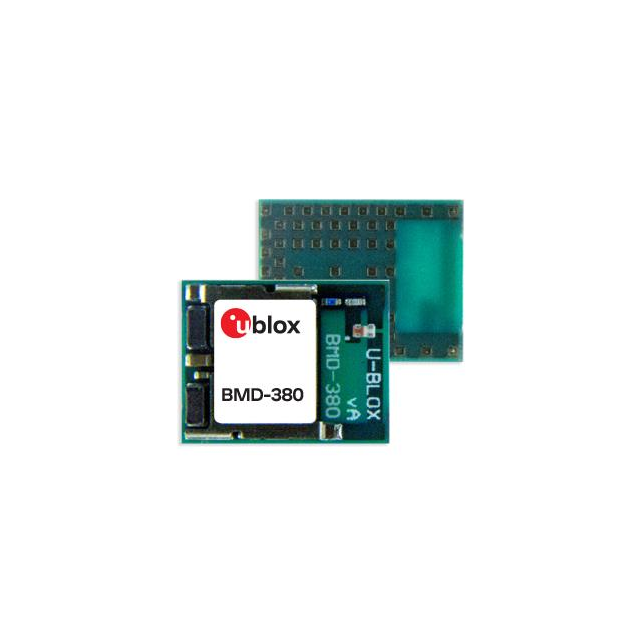

BMD-380-A-R
Activeu-blox
RF TXRX MOD 802.15.4 BT CHIP SMD
Deep-Dive with AI
Search across all available documentation for this part.
BMD-380-A-R
Activeu-blox
RF TXRX MOD 802.15.4 BT CHIP SMD
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | BMD-380-A-R |
|---|---|
| Antenna Type | Integrated, Chip |
| Current - Receiving [Max] | 9.9 mA |
| Current - Receiving [Min] | 4.6 mA |
| Current - Transmitting [Max] | 32.7 mA |
| Current - Transmitting [Min] | 4.8 mA |
| Data Rate | 2 Mbps |
| Frequency [Max] | 2.5 GHz |
| Frequency [Min] | 2.36 GHz |
| Memory Size | 1 MB, 256 kB |
| Modulation | GFSK, QPSK |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 63-SMD Module |
| Power - Output | 8 dBm |
| Protocol | Bluetooth v5.1, Thread, Zigbee® |
| RF Family/Standard | Bluetooth, 802.15.4 |
| Serial Interfaces | PWM, PDM, ADC, SPI, USB, GPIO, I2C, UART, I2S |
| Utilized IC / Part | nRF52840 |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 14.80 | |
| 10 | $ 13.32 | |||
| 50 | $ 11.99 | |||
| 100 | $ 10.79 | |||
| Digi-Reel® | 1 | $ 14.80 | ||
| 10 | $ 13.32 | |||
| 50 | $ 11.99 | |||
| 100 | $ 10.79 | |||
| Tape & Reel (TR) | 1000 | $ 10.79 | ||
Description
General part information
BMD-380 Series
802.15.4, Bluetooth Bluetooth v5.1, Thread, Zigbee® Transceiver Module 2.36GHz ~ 2.5GHz Integrated, Chip Surface Mount
Documents
Technical documentation and resources
No documents available
