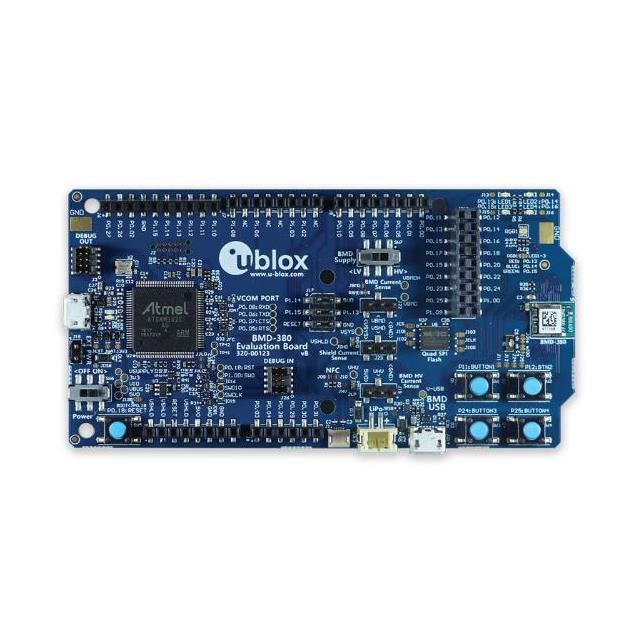

BMD-380-EVAL

Active

u-blox

EVAL BOARD BMD-380 NRF52840

Search across all available documentation for this part.

Active

u-blox

EVAL BOARD BMD-380 NRF52840

Technical Specifications

Parameters and characteristics for this part

Specification	BMD-380-EVAL

For Use With/Related Products	nRF52840, BMD-380
Supplied Contents	Board(s)
Type	Bluetooth® 5.x (BLE), Transceiver, 802.15.4 (Thread, Zigbee®)

Part	Supplied Contents	Type	For Use With/Related Products	Current - Transmitting [Min]	Current - Transmitting [Max]	Data Rate	Power - Output	Operating Temperature [Max]	Operating Temperature [Min]	RF Family/Standard	Utilized IC / Part	Memory Size	Frequency [Max]	Frequency [Min]	Protocol	Current - Receiving [Max]	Current - Receiving [Min]	Package / Case	Antenna Type	Modulation	Serial Interfaces	Voltage - Supply [Max]	Voltage - Supply [Min]	Mounting Type
u-blox BMD-380-EVAL	Board(s)	802.15.4 (Thread Zigbee®) Bluetooth® 5.x (BLE) Transceiver	BMD-380 nRF52840
u-blox BMD-380-A-R				4.8 mA	32.7 mA	2 Mbps	8 dBm	85 °C	-40 °C	802.15.4 Bluetooth	nRF52840	1 MB 256 kB	2.5 GHz	2.36 GHz	Bluetooth v5.1 Thread Zigbee®	9.9 mA	4.6 mA	63-SMD Module	Integrated Chip	GFSK QPSK	ADC GPIO I2C I2S PDM PWM SPI UART USB	3.6 V	1.7 V	Surface Mount

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 99.00

General part information

BMD-380 BMD-380, nRF52840 Transceiver; 802.15.4 (Thread, Zigbee®), Bluetooth® 5.x (BLE) Evaluation Board
