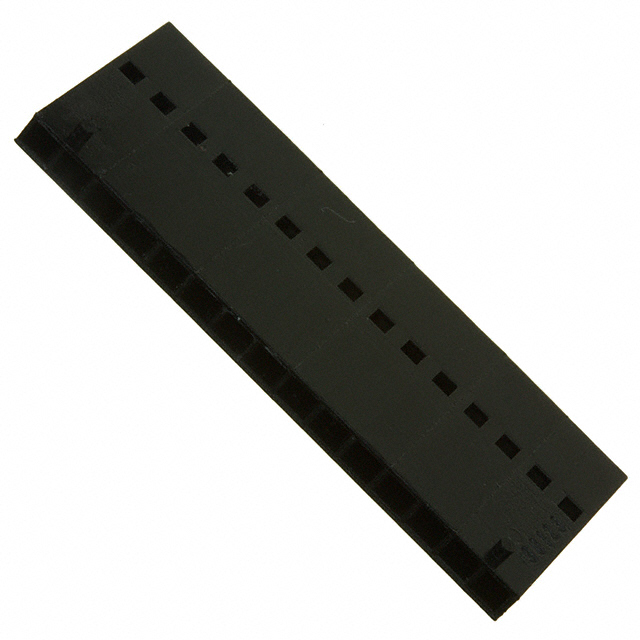

0901230115

Active

Molex

CONN HOUSING RCP 15 POS 2.54MM CRIMP ST CABLE MOUNT BLACK C-GRID III™ BAG

Search across all available documentation for this part.

Active

Molex

CONN HOUSING RCP 15 POS 2.54MM CRIMP ST CABLE MOUNT BLACK C-GRID III™ BAG

Technical Specifications

Parameters and characteristics for this part

2.54mm Pitch C-Grid III Modular Crimp Housing Single Row, 2 Polarizing Buttons, 4 Circuits, Black

Part	Number of Rows	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Note	Contact Type	Number of Positions	Contact Termination	Color	Features	Mounting Type	Connector Type
Molex 0901230106	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	6	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230108	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	8	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230107	1	2.54 mm	0.1 in	125 °C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	7	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230120	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	20	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230115	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	15	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230125	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket		Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230110	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	10	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.54mm Pitch C-Grid III Modular Crimp Housing Single Row, 2 Polarizing Buttons, 4 Circuits, Black
