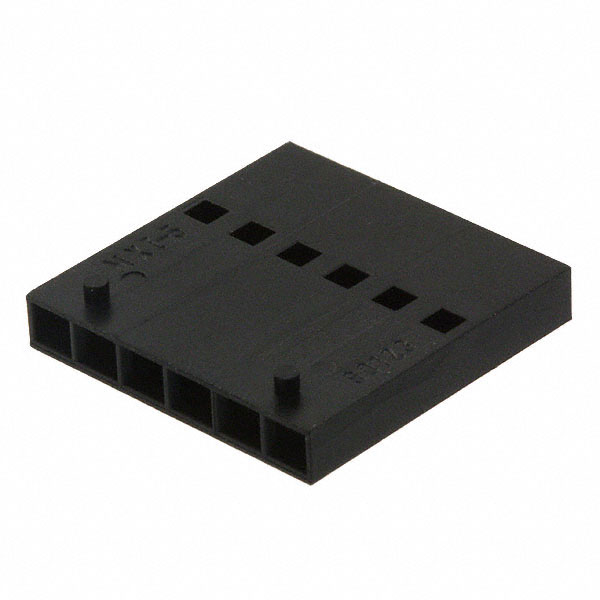

0901230106

Active

Molex

CONN RCPT HSG 6POS 2.54MM

Search across all available documentation for this part.

Active

Molex

CONN RCPT HSG 6POS 2.54MM

Technical Specifications

Parameters and characteristics for this part

2.54mm Pitch C-Grid III Modular Crimp Housing Single Row, 2 Polarizing Buttons, 4 Circuits, Black

Part	Number of Rows	Pitch [x]	Pitch [x]	Operating Temperature [Max]	Operating Temperature [Min]	Insulation Material	Note	Contact Type	Number of Positions	Contact Termination	Color	Features	Mounting Type	Connector Type
Molex 0901230106	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	6	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230108	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	8	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230107	1	2.54 mm	0.1 in	125 °C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	7	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230120	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	20	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230115	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	15	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230125	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket		Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle
Molex 0901230110	1	2.54 mm	0.1 in	105 ░C	-55 °C	Polyphenylene Oxide (PPO)	Contacts Not Included	Female Socket	10	Crimp	Black	Polarizing Key	Free Hanging (In-Line)	Receptacle

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

2.54mm Pitch C-Grid III Modular Crimp Housing Single Row, 2 Polarizing Buttons, 4 Circuits, Black
