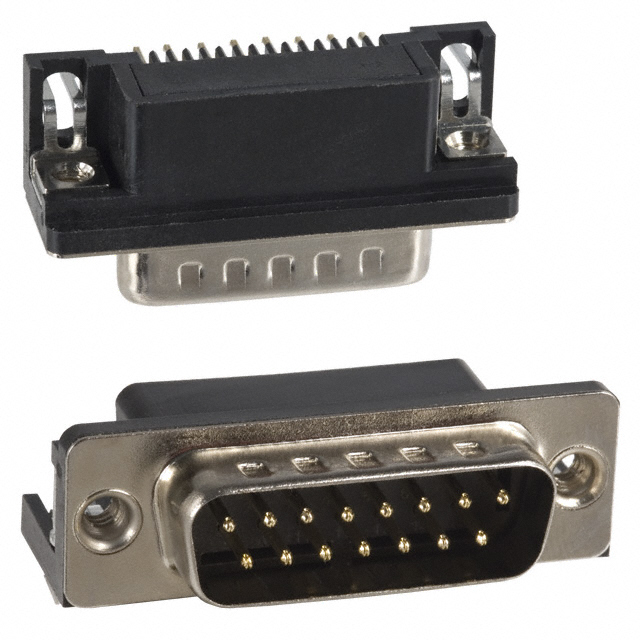

182-015-112-531

Obsolete

MH Connectors

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

182-015-112-531

Obsolete

MH Connectors

CONN D-SUB PLUG 15POS R/A SLDR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	182-015-112-531

Backset Spacing	8.08 mm
Backset Spacing	0.318 "
Color	Black
Connector Style	D-Sub
Connector Type	Plug, Male Pins
Contact Finish	Gold
Contact Finish Thickness	Flash
Contact Type	Signal
Current Rating (Amps)	5 A
Dielectric Material	Polyester, Glass Filled
Features	Grounding Indents, Board Lock
Flange Feature	Housing/Shell (4-40)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle, Panel Mount
Number of Positions	15
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout	2
Termination	Solder

182-015 Series

Part	Shell Material, Finish	Backset Spacing	Backset Spacing	Color	Number of Positions	Shell Size, Connector Layout	Contact Finish Thickness	Contact Type	Current Rating (Amps)	Contact Finish	Operating Temperature [Max]	Operating Temperature [Min]	Termination	Connector Style	Dielectric Material	Flange Feature	Mounting Type	Number of Rows	Connector Type	Material Flammability Rating	Contact Material	Features
MH Connectors 182-015-213R431	Nickel Plated Steel	8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyamide (PA9T) Nylon 9T	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	2	Receptacle Female Sockets	UL94 V-0
MH Connectors 182-015-213R451	Nickel Plated Steel	8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	2	Receptacle Female Sockets	UL94 V-0
MH Connectors 182-015-113R531	Nickel Plated Steel	8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	2	Male Pins Plug	UL94 V-0	Brass	Board Lock Grounding Indents
MH Connectors 182-015-113R451	Nickel Plated Steel	8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	2	Male Pins Plug	UL94 V-0	Brass	Grounding Indents
MH Connectors 182-015-113R431	Nickel Plated Steel	8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyamide (PA9T) Nylon 9T	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	2	Male Pins Plug	UL94 V-0	Brass	Grounding Indents
MH Connectors 182-015-113R171	Nickel Plated Steel	8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyamide (PA9T) Nylon 9T	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	2	Male Pins Plug	UL94 V-0	Brass	Ground Strap Grounding Indents
MH Connectors 182-015-113R181	Nickel Plated Steel	8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyamide (PA9T) Nylon 9T	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	2	Male Pins Plug	UL94 V-0	Brass	Ground Strap Grounding Indents
MH Connectors 182-015-112-531		8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyester Glass Filled	Housing/Shell (4-40)	Panel Mount Right Angle Through Hole	2	Male Pins Plug	UL94 V-0		Board Lock Grounding Indents
MH Connectors 182-015-112-161		8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyester Glass Filled	Housing/Shell (Unthreaded)	Panel Mount Right Angle Through Hole	2	Male Pins Plug	UL94 V-0		Ground Strap Grounding Indents
MH Connectors 182-015-212-481		8.08 mm	0.318 "	Black	15	2	Flash	Signal	5 A	Gold	105 ░C	-55 °C	Solder	D-Sub	Polyester Glass Filled	Female Screwlock (4-40) Mating Side	Panel Mount Right Angle Through Hole	2	Receptacle Female Sockets	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

182-015 Series

15 Position D-Sub Plug, Male Pins Connector
