50.036 PA/SW

Active

Jacob GmbH

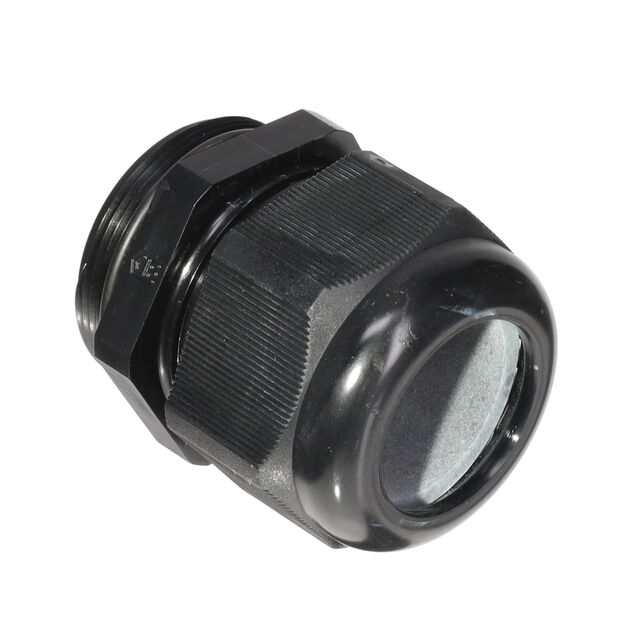

CABLE GLAND 22-32MM PG36

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 22-32MM PG36

Technical Specifications

Parameters and characteristics for this part

Specification	50.036 PA/SW

Color	Black
Includes	Sealing Ring
Ingress Protection	IP68 - Dust Tight, Waterproof
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	22 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.866 in
Thread Length	13 mm
Thread Length	0.512 in
Thread Size	PG36
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Thread Size	Material	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Jacob GmbH 50.036	100 °C	-40 °C	O-Ring Seal	PG36	Brass Nickel Plated	0.354 in	9 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Silver	Cable Gland	24 mm	0.945 in
Jacob GmbH 50.036 PASW18	100 °C	-40 °C	Sealing Ring	PG36		0.709 in	18.01 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Black	Cable Gland	22 mm	0.866 in
Jacob GmbH 50.036 PA7035	100 °C	-40 °C	Sealing Ring	PG36		0.512 in	13 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Gray	Cable Gland	22 mm	0.866 in
Jacob GmbH 50.036 PA/SW	100 °C	-40 °C	Sealing Ring	PG36		0.512 in	13 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Black	Cable Gland	22 mm	0.866 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Polyamide (PA6), Nylon 6 PG36 Black
