50.036

Active

Jacob GmbH

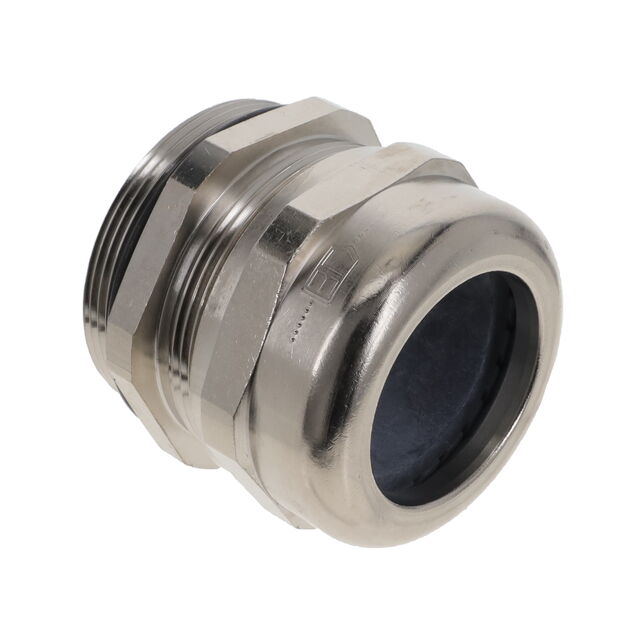

CABLE GLAND 24-32MM PG36 BRASS

Search across all available documentation for this part.

Active

Jacob GmbH

CABLE GLAND 24-32MM PG36 BRASS

Technical Specifications

Parameters and characteristics for this part

Specification	50.036

Color	Silver
Includes	O-Ring, Seal
Ingress Protection	IP68 - Dust Tight, Waterproof
Material	Brass, Nickel Plated
Operating Temperature [Max]	100 °C
Operating Temperature [Min]	-40 °C
Outside Cable Diameter (Max) [Max]	32 mm
Outside Cable Diameter (Max) [Max]	1.26 in
Outside Cable Diameter (Min) [Min] [diameter]	24 mm
Outside Cable Diameter (Min) [Min] [diameter]	0.945 in
Thread Length	0.354 in
Thread Length	9 mm
Thread Size	PG36
Type	Cable Gland

Part	Operating Temperature [Max]	Operating Temperature [Min]	Includes	Thread Size	Material	Thread Length	Thread Length	Outside Cable Diameter (Max) [Max]	Outside Cable Diameter (Max) [Max]	Ingress Protection	Color	Type	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min) [Min] [diameter]
Jacob GmbH 50.036	100 °C	-40 °C	O-Ring Seal	PG36	Brass Nickel Plated	0.354 in	9 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Silver	Cable Gland	24 mm	0.945 in
Jacob GmbH 50.036 PASW18	100 °C	-40 °C	Sealing Ring	PG36		0.709 in	18.01 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Black	Cable Gland	22 mm	0.866 in
Jacob GmbH 50.036 PA7035	100 °C	-40 °C	Sealing Ring	PG36		0.512 in	13 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Gray	Cable Gland	22 mm	0.866 in
Jacob GmbH 50.036 PA/SW	100 °C	-40 °C	Sealing Ring	PG36		0.512 in	13 mm	32 mm	1.26 in	IP68 - Dust Tight Waterproof	Black	Cable Gland	22 mm	0.866 in

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Cable Gland Brass, Nickel Plated PG36 Silver
