PRPC010SADN-RC

Unknown

Sullins Connector Solutions

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

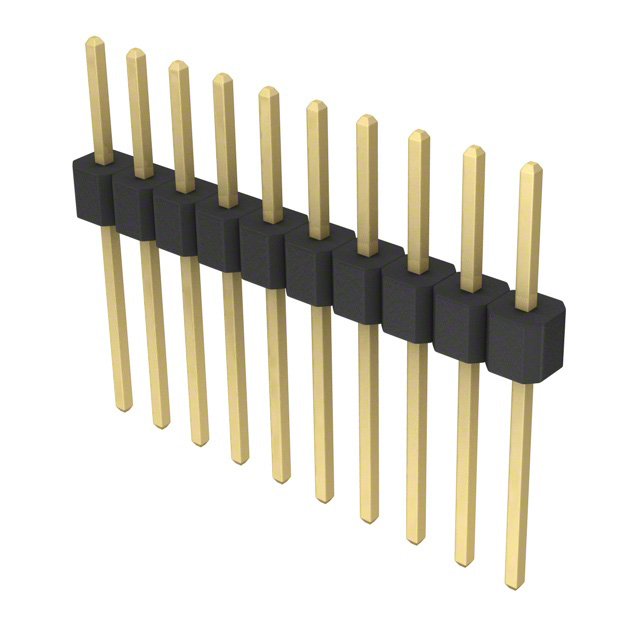

PRPC010SADN-RC

Unknown

Sullins Connector Solutions

CONN HEADER VERT 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC010SADN-RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	10.67 mm
Contact Length - Post [x]	0.42 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Overall Contact Length	19.01 mm
Overall Contact Length	0.748 in
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC010 Series

Part	Contact Material	Termination	Insulation Material	Connector Type	Pitch - Mating	Pitch - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Fastening Type	Shrouding	Mounting Type	Insulation Color	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Material Flammability Rating	Number of Positions	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Style	Contact Shape	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PRPC010SAAN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C	0.448 in	11.39 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010SBCN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin	0.098 in	2.5 mm	0.32 in	8.13 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010DGAN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	2	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin			0.12 in	3.05 mm	Gold	UL94 V-0	20	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm	2.54 mm	0.1 in	0.197 in	5 mm
Sullins Connector Solutions PRPC010DFBN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	2	-40 °C	105 ░C	0.637 in	16.17 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm			Gold	UL94 V-0	20	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm	2.54 mm	0.1 in			0.22 in	5.58 mm
Sullins Connector Solutions PRPC010SBAN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010SADN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C	0.748 in	19.01 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm	0.42 in	10.67 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010SFAN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C		0.537 "	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm							13.63 mm
Sullins Connector Solutions PRPC010SGAN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm
Sullins Connector Solutions PRPC010DABN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	2	-40 °C	105 ░C	0.558 in	14.18 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm			Gold	UL94 V-0	20	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square		2.54 mm	0.1 in			0.23 in	5.84 mm
