PRPC010SBAN-M71RC

Active

Sullins Connector Solutions

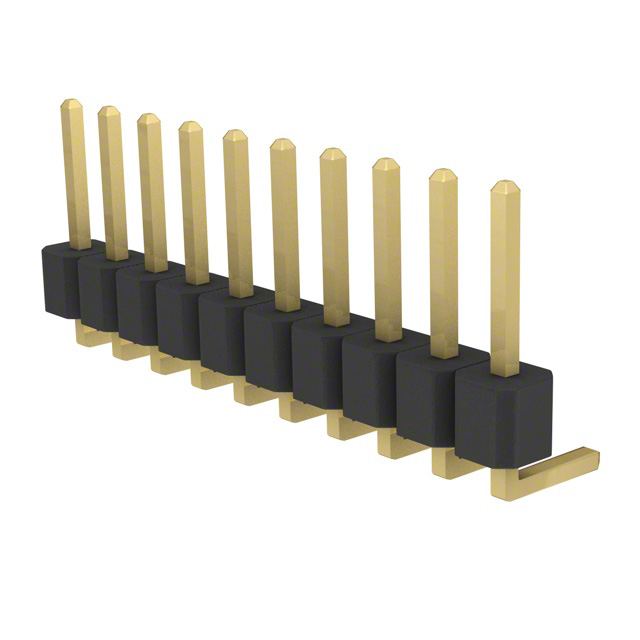

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

PRPC010SBAN-M71RC

Active

Sullins Connector Solutions

CONN HEADER R/A 10POS 2.54MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PRPC010SBAN-M71RC

Connector Type	Breakaway, Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	Flash
Contact Finish Thickness - Post	Flash
Contact Length - Mating	5.84 mm
Contact Length - Mating [x]	0.23 in
Contact Length - Post [x]	0.12 in
Contact Length - Post [x]	3.05 mm
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	3 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height [z]	0.098 in
Insulation Height [z]	2.5 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	1
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.1 in
Pitch - Mating	2.54 mm
Shrouding	Unshrouded
Style	Board to Board, Cable
Termination	Solder

PRPC010 Series

Part	Contact Material	Termination	Insulation Material	Connector Type	Pitch - Mating	Pitch - Mating	Number of Rows	Operating Temperature [Min]	Operating Temperature [Max]	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Post	Fastening Type	Shrouding	Mounting Type	Insulation Color	Contact Type	Insulation Height [z]	Insulation Height [z]	Contact Length - Post [x]	Contact Length - Post [x]	Contact Finish - Post	Material Flammability Rating	Number of Positions	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Positions Loaded	Contact Length - Mating [x]	Contact Length - Mating	Contact Finish - Mating	Style	Contact Shape	Contact Length - Mating [x]	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Contact Length - Post	Contact Length - Post	Overall Contact Length
Sullins Connector Solutions PRPC010SAAN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C	0.448 in	11.39 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010SBCN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin	0.098 in	2.5 mm	0.32 in	8.13 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010DGAN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	2	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin			0.12 in	3.05 mm	Gold	UL94 V-0	20	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm	2.54 mm	0.1 in	0.197 in	5 mm
Sullins Connector Solutions PRPC010DFBN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	2	-40 °C	105 ░C	0.637 in	16.17 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm			Gold	UL94 V-0	20	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm	2.54 mm	0.1 in			0.22 in	5.58 mm
Sullins Connector Solutions PRPC010SBAN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010SADN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C	0.748 in	19.01 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm	0.42 in	10.67 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square
Sullins Connector Solutions PRPC010SFAN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C		0.537 "	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm							13.63 mm
Sullins Connector Solutions PRPC010SGAN-M71RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	1	-40 °C	105 ░C			Flash	Push-Pull	Unshrouded	Through Hole Right Angle	Black	Male Pin	0.098 in	2.5 mm	0.12 in	3.05 mm	Gold	UL94 V-0	10	Flash	3 A	All	0.318 "		Gold	Board to Board Cable	Square	8.08 mm
Sullins Connector Solutions PRPC010DABN-RC	Brass	Solder	Polybutylene Terephthalate (PBT)	Breakaway Header	0.1 in	2.54 mm	2	-40 °C	105 ░C	0.558 in	14.18 mm	Flash	Push-Pull	Unshrouded	Through Hole	Black	Male Pin	0.098 in	2.5 mm			Gold	UL94 V-0	20	Flash	3 A	All	0.23 in	5.84 mm	Gold	Board to Board Cable	Square		2.54 mm	0.1 in			0.23 in	5.84 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 0.30
		10	$ 0.25
		100	$ 0.20
		500	$ 0.17
		1000	$ 0.14
		5000	$ 0.12
		10000	$ 0.12

Description

General part information

PRPC010 Series

Connector Header Through Hole, Right Angle 10 position 0.100" (2.54mm)

Documents

Technical documentation and resources
