2006-1611/1000-541

Active

WAGO Corporation

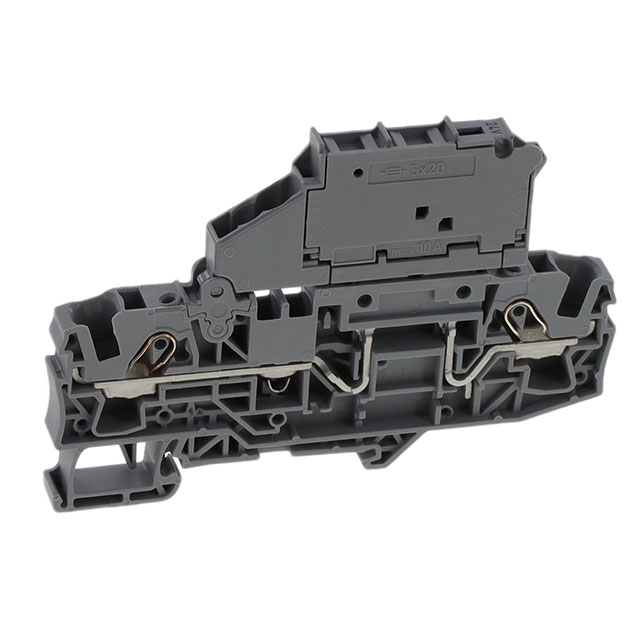

FUSED TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², CLAMP, 10 A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2006-1611/1000-541

Active

WAGO Corporation

FUSED TERMINAL BLOCK, 2 POSITIONS, 20 AWG, 8 AWG, 10 MM², CLAMP, 10 A

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2006-1611/1000-541

Color	Gray
Current - IEC	10 A
Disconnect Type	Fuse
Features	LED Indicator
Fuse Type [x]	5 mm
Fuse Type [y]	20 mm
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length [Max]	15 mm
Stripping Length [Min]	13 mm
Terminal - Width	7.5 mm
Termination Style	Push In, Spring
Type	Disconnect
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	14 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²

2006-161 Series

Part	Material - Insulation	Number of Levels	Type	Stripping Length [Min]	Stripping Length [Max]	Disconnect Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Termination Style	Voltage - IEC	Number of Positions	Fuse Type [y]	Fuse Type [x]	Terminal - Width	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Features
WAGO Corporation 2006-1611	Polyamide (PA66) Nylon 6/6	1	Disconnect	13 mm	15 mm	Fuse	14 AWG	8 AWG	Gray	Push In Spring	800 V	2	20 mm	5 mm	7.5 mm	10 mm²	2.5 mm²	10 A
WAGO Corporation 2006-1611/1000-541	Polyamide (PA66) Nylon 6/6	1	Disconnect	13 mm	15 mm	Fuse	14 AWG	8 AWG	Gray	Push In Spring	800 V	2	20 mm	5 mm	7.5 mm	10 mm²	2.5 mm²	10 A	LED Indicator
