2006-1611

Active

WAGO Corporation

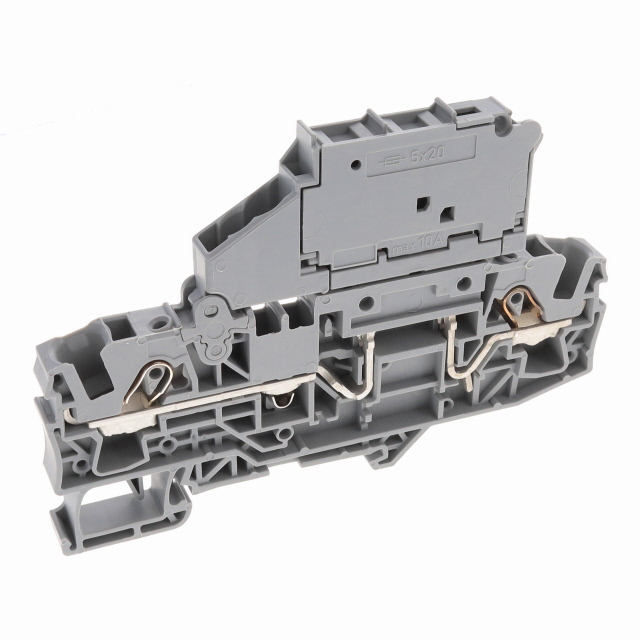

CONN FUSE DISCONNECT TERMINAL BLOCK 2 POS PUSH-IN CAGE CLAMP T DIN RAIL 10A BOX

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

2006-1611

Active

WAGO Corporation

CONN FUSE DISCONNECT TERMINAL BLOCK 2 POS PUSH-IN CAGE CLAMP T DIN RAIL 10A BOX

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	2006-1611

Color	Gray
Current - IEC	10 A
Disconnect Type	Fuse
Fuse Type [x]	5 mm
Fuse Type [y]	20 mm
Material - Insulation	Polyamide (PA66), Nylon 6/6
Number of Levels	1
Number of Positions	2
Stripping Length [Max]	15 mm
Stripping Length [Min]	13 mm
Terminal - Width	7.5 mm
Termination Style	Push In, Spring
Type	Disconnect
Voltage - IEC	800 V
Wire Gauge or Range - AWG [Max]	14 AWG
Wire Gauge or Range - AWG [Min]	8 AWG
Wire Gauge or Range - mm² [Max]	10 mm²
Wire Gauge or Range - mm² [Min]	2.5 mm²

2006-161 Series

Part	Material - Insulation	Number of Levels	Type	Stripping Length [Min]	Stripping Length [Max]	Disconnect Type	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Color	Termination Style	Voltage - IEC	Number of Positions	Fuse Type [y]	Fuse Type [x]	Terminal - Width	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Features
WAGO Corporation 2006-1611	Polyamide (PA66) Nylon 6/6	1	Disconnect	13 mm	15 mm	Fuse	14 AWG	8 AWG	Gray	Push In Spring	800 V	2	20 mm	5 mm	7.5 mm	10 mm²	2.5 mm²	10 A
WAGO Corporation 2006-1611/1000-541	Polyamide (PA66) Nylon 6/6	1	Disconnect	13 mm	15 mm	Fuse	14 AWG	8 AWG	Gray	Push In Spring	800 V	2	20 mm	5 mm	7.5 mm	10 mm²	2.5 mm²	10 A	LED Indicator

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 12.50
		10	$ 11.00
		25	$ 10.37
		50	$ 9.87
		100	$ 9.68
		250	$ 8.43
		500	$ 8.12
		1000	$ 7.81
Newark	Each	1	$ 15.49
		25	$ 14.66
		100	$ 13.83
		250	$ 12.94
		500	$ 12.05

Description

General part information

2006-161 Series

The 2006-1611 is a 2P2C Fuse Disconnect Terminal Block with pivoting fuse holder for 5 x 20mm miniature metric fuse. It comes with a polyamide 66 (PA 66) insulator and there is no blown fuse indication.
