R222252022

Active

Radiall USA, Inc.

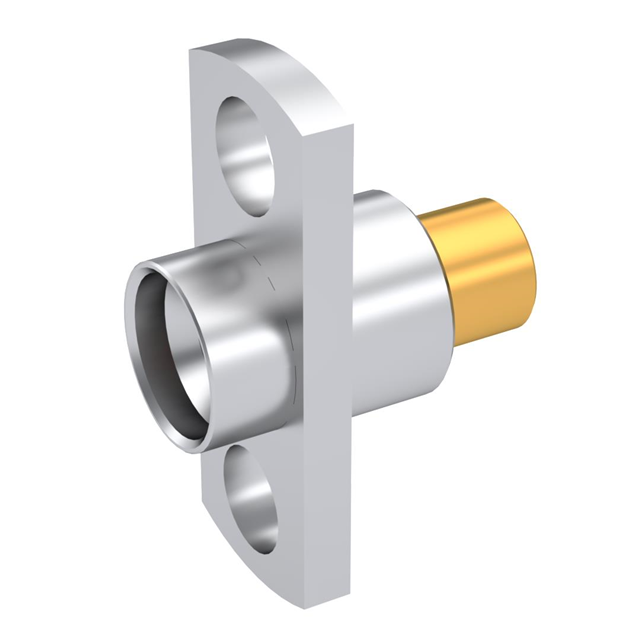

RF CONNECTOR, 1 CONTACT(S), MALE, PANEL MOUNT, SOLDER LUG TERMINAL, JACK,

Search across all available documentation for this part.

Active

Radiall USA, Inc.

RF CONNECTOR, 1 CONTACT(S), MALE, PANEL MOUNT, SOLDER LUG TERMINAL, JACK,

Technical Specifications

Parameters and characteristics for this part

Specification	R222252022

Body Finish	Gold
Body Material	Brass, Stainless Steel
Cable Group	RG-405 (.085" Semi Rigid)
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Type	Male Pin, Jack
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Features	Full Detent
Frequency - Max [Max]	40 GHz
Housing Color	Gold, Silver
Impedance	50 Ohms
Mounting Feature	Flange
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder
Voltage Rating	335 V

Part	Features	Fastening Type	Mounting Feature	Frequency - Max [Max]	Cable Group	Center Contact Plating	Impedance	Housing Color	Center Contact Material	Body Finish	Dielectric Material	Shield Termination	Number of Ports	Mating Cycles	Body Material	Voltage Rating	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Contact Termination	Mounting Type
Radiall USA, Inc. R222252301W	Limited Detent	Snap-On	Flange	40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Solder	1	500	Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder
Radiall USA, Inc. R222252022	Full Detent	Snap-On	Flange	40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Solder	1		Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder
Radiall USA, Inc. R222252001	Full Detent	Snap-On		40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Bronze	Gold	Polytetrafluoroethylene (PTFE)	Solder	1		Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder	Free Hanging (In-Line)
Radiall USA, Inc. R222252301	Limited Detent	Snap-On	Flange	40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Beryllium Copper	Gold	Polytetrafluoroethylene (PTFE)	Solder	1	500	Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder
Radiall USA, Inc. R222252001W	Full Detent	Snap-On		40 GHz	RG-405 (.085" Semi Rigid)	Gold	50 Ohms	Gold Silver	Bronze	Gold	Polytetrafluoroethylene (PTFE)	Solder	1		Brass Stainless Steel	335 V	Jack Male Pin	-65 ░C	165 °C	Solder	Free Hanging (In-Line)
